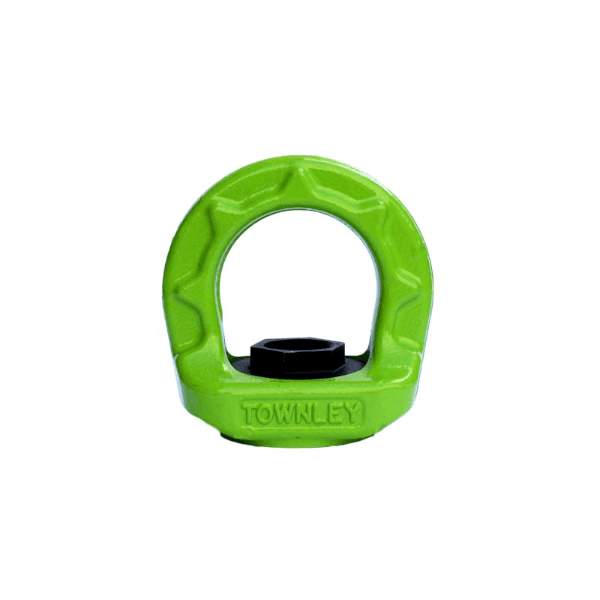

Eye Nuts G10 Swivel
Features
- Forged from High Tensile Alloy Steel
- Tempered
- 100% electromagnetic crack testing to AS1171
- Hi-Visibililty Powder Coating to AS4506
Specifications

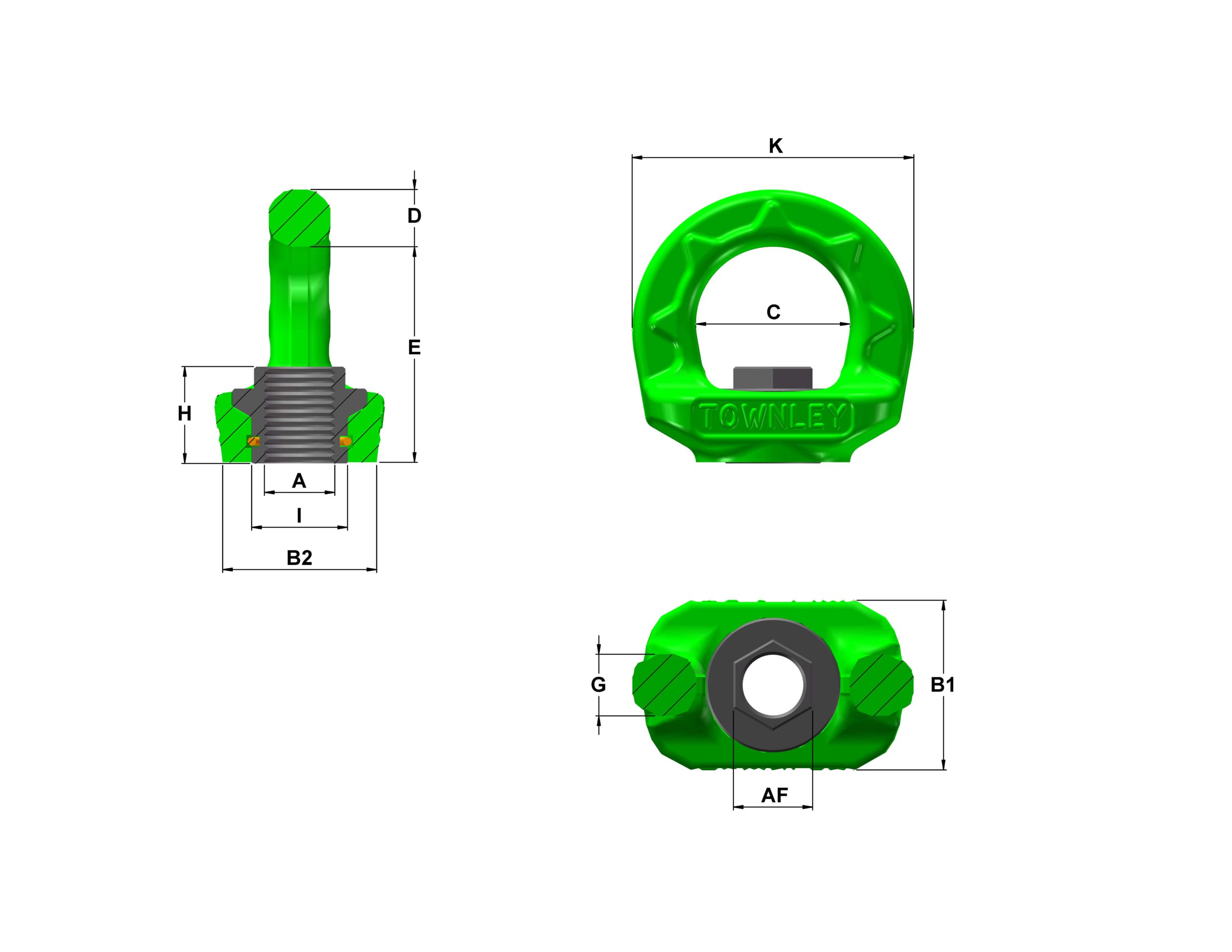

| Type | WLL F1 (t) | WLL F2 (t) | Size A | B1 | B2 | C | D | E | G | H | I | K | A/F | Weight (kg) | Product Code |
| Metric Coarse | 1 | 0.3 | M08 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 | 0.23 | TSEN08 |
| Metric Coarse | 1 | 0.4 | M10 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 | 0.23 | TSEN10 |
| Metric Coarse | 2 | 0.75 | M12 | 33 | 30 | 30 | 11 | 43 | 11 | 18.5 | 18 | 55 | 16 | 0.23 | TSEN12 |
| Metric Coarse | 4 | 1.5 | M16 | 39 | 35 | 34 | 14 | 49 | 14 | 21 | 22 | 64 | 18 | 0.38 | TSEN16 |
| Metric Coarse | 6 | 2.3 | M20 | 48 | 42 | 39 | 16 | 56 | 16 | 25 | 28 | 69 | 24 | 0.6 | TSEN20 |
| Metric Coarse | 7 | 2.3 | M22 | 48 | 42 | 39 | 16 | 56 | 16 | 28 | 28 | 69 | 24 | 0.72 | TSEN22 |
| Metric Coarse | 8 | 3.2 | M24 | 56 | 50 | 50 | 19 | 71 | 19 | 28 | 33 | 86 | 27 | 1.1 | TSEN24 |
