CHAIN SLING SELECTION ORDER AND ENQUIRY FORM

INSTRUCTIONS

1. Fill out your selections
2. Verify the chain size and WLL to the WLL Charts (chain size dictates WLL). Enter the correct chain size to WLL.
3. Note any comments and questions in the appropriate field
4. Submit button to send us an email with your chain sling configuration
5. We will contact you for a price and availability. If you are an account customer we will obtain a Purchase Order

GRADE AND NUMBER OF LEGS *

Gr80 Single Leg
Gr80 2 Legged

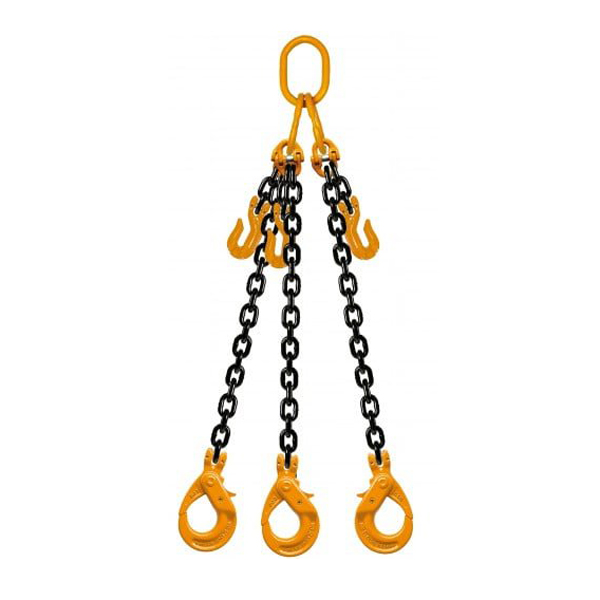

Gr80 3 Legged
Gr80 4 Legged

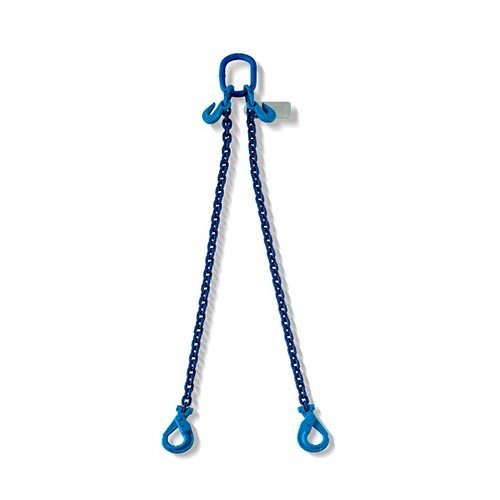

Gr100 Double Leg

CHAIN SIZE - Note Chain Size will dictate WLL refer to WLL Charts

6mm
7mm
8mm
10mm
13mm
16mm
20mm
22mm
26mm
32mm

CHAIN LENGTH

Length from start of chain to end of chain (excluding fitting lengths)

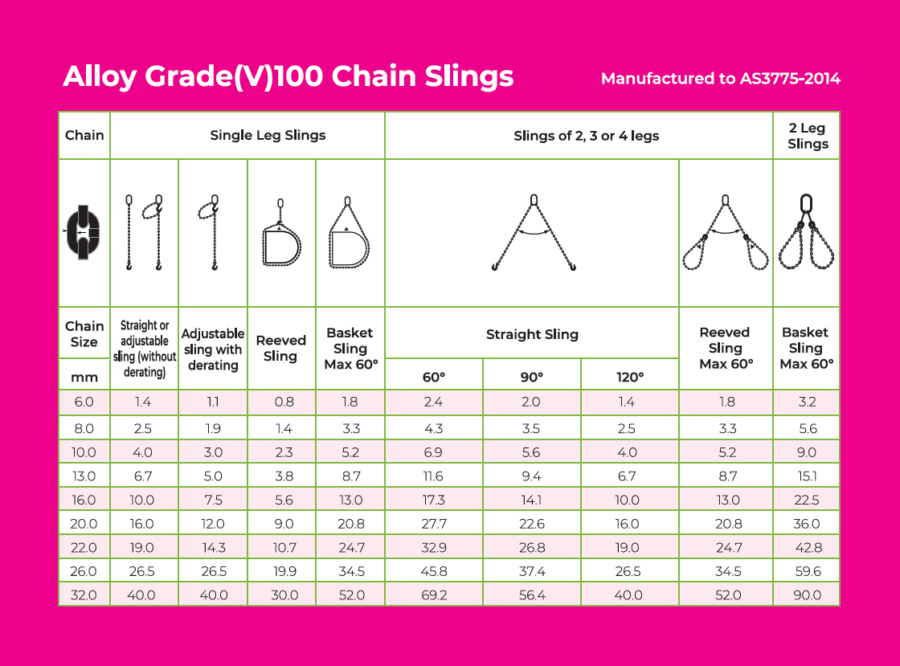

WORKING LOAD LIMITS (note depending on the configuration type and number of legs, WLL will differ, check WLL Charts)

1t
1.5t
2t
3.2t
5.3t
8t
12.5t
15t
21.2t
31.5t
4t
10t
16t
20t
19t
26.5t
40t

CONFIGURATION TYPE (note WLL rating is governed by sling configuration)

Straight

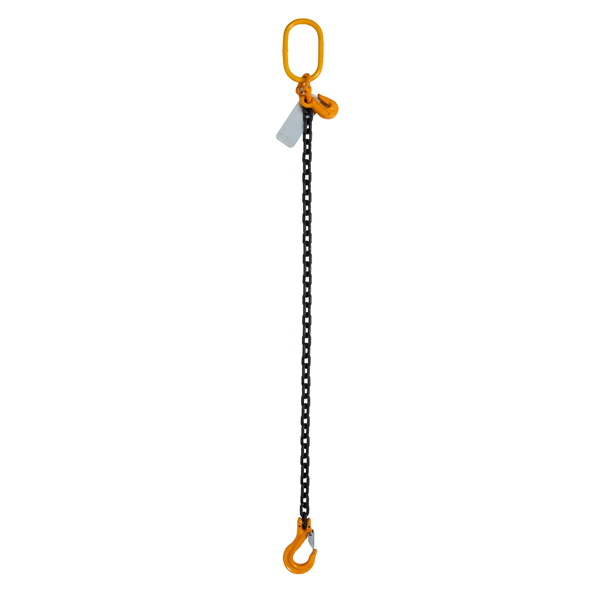

Adjustable
Reeved
Multi Legged 60 degress
Multi Legged 90 degrees
Multi Legged 120 degrees
Multi Reeved Sling Max 60 Degrees

IF ADJUSTABLE SHORTENING IS REQUIRED

GR8 EYE CRADLE GRAB HOOK
GR100 EYE GRAB HOOK

KITO PWB prefers that ALL shortenings be attached to the top fitting using a separate Connector which is the most versatile, usable and safest configuration. However, shortening devices for chain sizes 16 mm and above must be fitted to separate connecting links to the chain. Only devices on chain slings comprising of 13mm chain or below may share the same connector as the leg of chain.

Use a separate connector if Shortening (Preferred)?

TOP FITTING *
