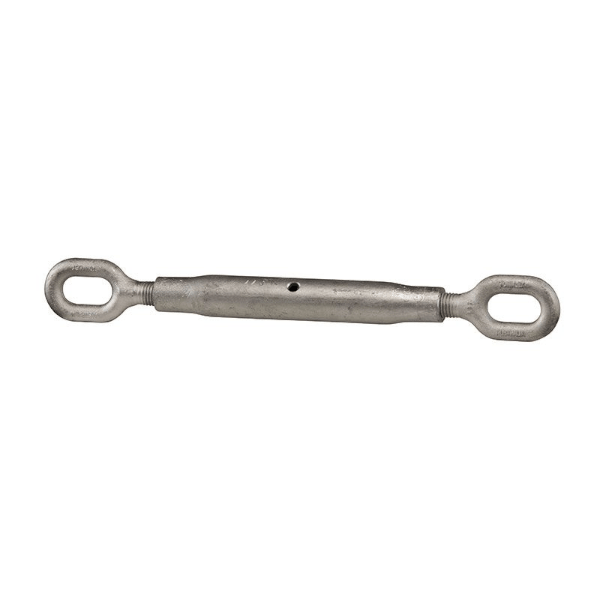

Rigging Screw Eye & Eye
Additional information
| Grade | Grade L, Grade S, Grade P |
|---|---|
| WLL | 0.3, 0.5, 0.75, 1.25, 2.5, 5, 6, 7.5, 10, 15, 20, 0.6, 1, 1.6, 4, 8, 16, 0.8, 1.2, 2, 3.2, 5, 10, 20 |
| Nominal Size | M10, M12, M16, M20, M24, M33, 1.25, 1.5, 1.75, 2, 2.25, 2.5, M48 |
Specifications
|
Type |
Working Load Limit (t) |
Nominal Size |
Product Code |
| Grade L | 0.3 | M10 | RSEEL10 |
| Grade L | 0.5 | M12 | RSEEL12 |
| Grade L | 0.75 | M16 | RSEEL16 |
| Grade L | 1.25 | M20 | RSEEL20 |
| Grade L | 2.5 | M24 | RSEEL24 |
| Grade L | 5 | M33 | RSEEL33 |
| Grade L | 5 | 1.25 | RSEEL1250 |
| Grade L | 6 | 1.5 | RSEEL1500 |
| Grade L | 7.5 | 1.75 | RSEEL1750 |
| Grade L | 10 | 2 | RSEEL2000 |
| Grade L | 15 | 2.25 | RSEEL2250 |
| Grade L | 20 | 2.5 | RSEEL2500 |
| Grade P | 0.6 | M10 | RSEE10P |
| Grade P | 1 | M12 | RSEE12P |
| Grade P | 1.6 | M16 | RSEE16P |
| Grade P | 2.5 | M20 | RSEE20P |
| Grade P | 4 | M24 | RSEE24P |
| Grade P | 8 | M33 | RSEE33P |
| Grade P | 16 | M48 | RSEE48P |
| Grade S | 0.8 | M10 | RSEE10S |
| Grade S | 1.2 | M12 | RSEE12S |
| Grade S | 2 | M16 | RSEE16S |
| Grade S | 3.2 | M20 | RSEE20S |
| Grade S | 5 | M24 | RSEE24S |
| Grade S | 10 | M33 | RSEE33S |
| Grade S | 20 | M48 | RSEE48S |
