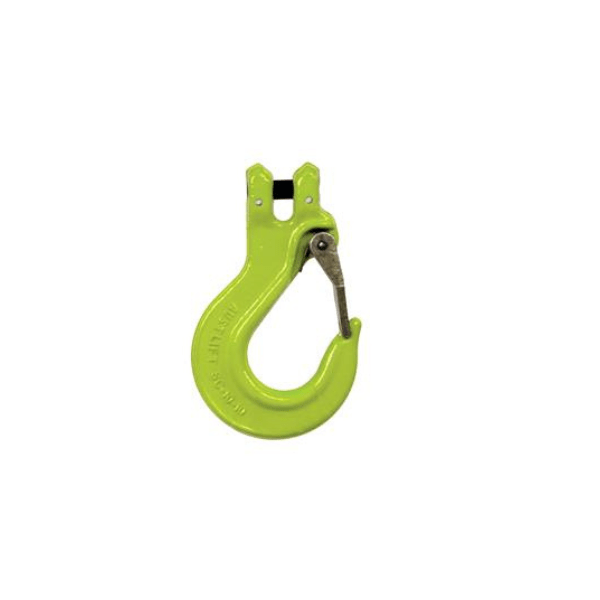

Grade 100 Clevis Sling Hook with Latch

Features

  • Australian Standard: AS 3776
  • Chain Size 7 -22 mm
  • Can be mechanically connected to grade 100 chain for easy assembly and use.

Grade 80 100 clevis sling hooks are a general purpose hook suitable for most sling applications and comes with a cast latch for added safety. Clevis alloys easy connection to chain.

Specifications

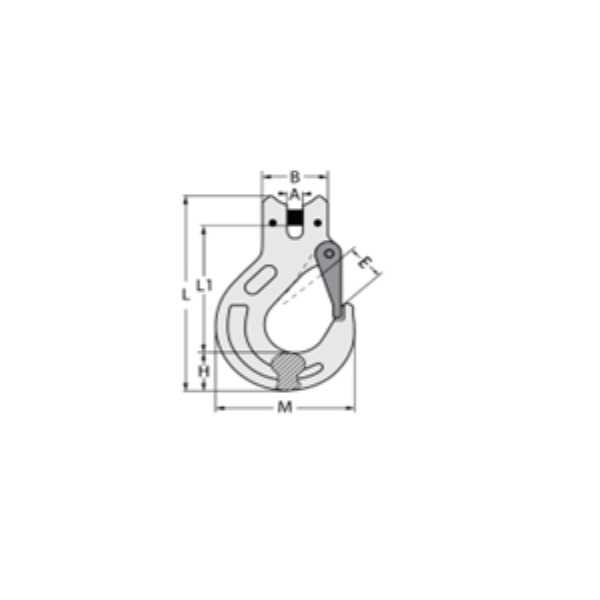

SIZE (mm) CODE WLL (T) Wt. (kg) DIMENSIONS (mm)
A B E H M L L1
6 GKN06+ 1.4 0.33 75 32 17 21 68.5 109 73
8 GKN8+ 2.5 0.6 9.5 37 23 27.5 88 134 88.5
10 GKN10+ 4 1.3 12.5 48 29 32 102 160 105
13 GKN13+ 6.7 2.3 15 59 38 42 134 203 132
16 GKN16+ 10 3.6 18.5 70 46 50 160.5 248 161
20 GKN20+ 16 73 25 85 50 56 190.5 297 197
22 GKN22+ 19 12.1 27 100 65 62 214.5 326 2.14
26 GKN26+ 26.5 16.1 30.5 118 72 73 248 383 247
32 GKN32+ 40 272 375 149 87 87 281 474 310
