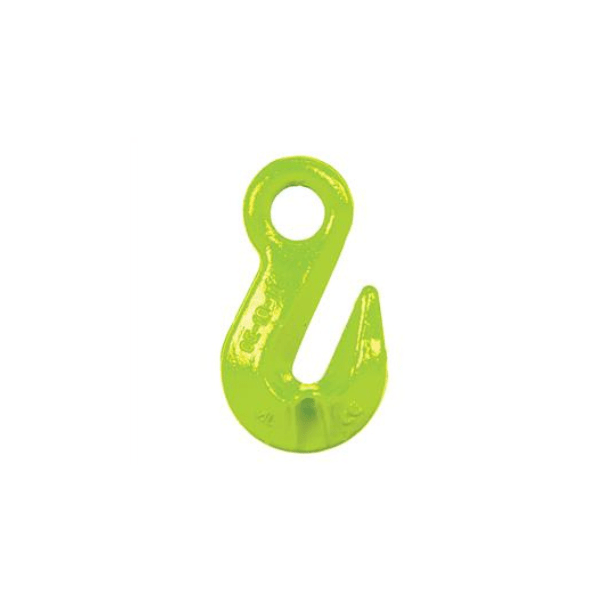

Grade 100 Eye Grab Hook
Features
- Australian Standard: AS 3776
- Chain Size 7 – 26 mm
- No reduction in WLL when used as a shortening hook on cradle type with supporting wings.
Grade 100 eye grab hooks provide the flexibility to shorten chain leg on a sling may also be used for back-hooking. Grab hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for ease of connection of coup-link.
Specifactions
| SIZE (mm) |
CODE | WLL (T) |
Wt. (kg) |
DIMENSIONS (mm) | ||||
| D | E | M | L | L1 | ||||
| 6 | OG6+ | 1.4 | 0.2 | 14.5 | 8 | 43.5 | 70 | 50.5 |
| 8 | OG8+ | 2.5 | 0.28 | 18 | 10.8 | 53 | 91 | 73 |
| 10 | OG10+ | 4 | 0.72 | 22.5 | 13.5 | 42 | 126 | 84 |
| 13 | OG13+ | 6.7 | 1.6 | 28 | 16.5 | 96 | 162 | 104 |
| 16 | OG16+ | 10 | 2.45 | 36 | 19.2 | 112.5 | 182 | 130 |
| 20 | OG20+ | 16 | 4.72 | 43.5 | 24 | 143 | 225 | 152 |
| 22 | OG22+ | 19 | 8.2 | 48.5 | 27 | 160.5 | 259 | 184 |
