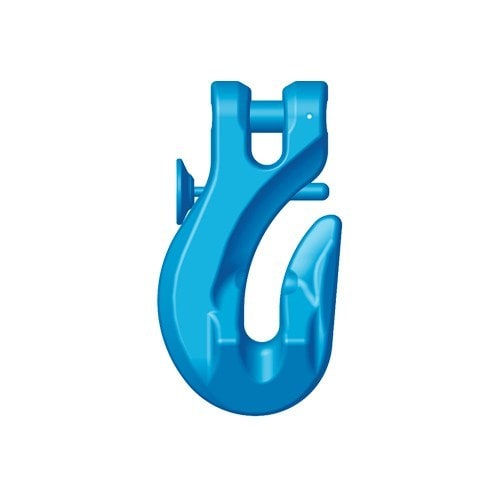

Grade 100 Grab Hook with Pin
Features
- Australian Standard: AS 3776
- Chain Size 7 – 22 mm
No reduction in WLL when used as a shortening hook on cradle type with supporting wings.
Extra safe pin.

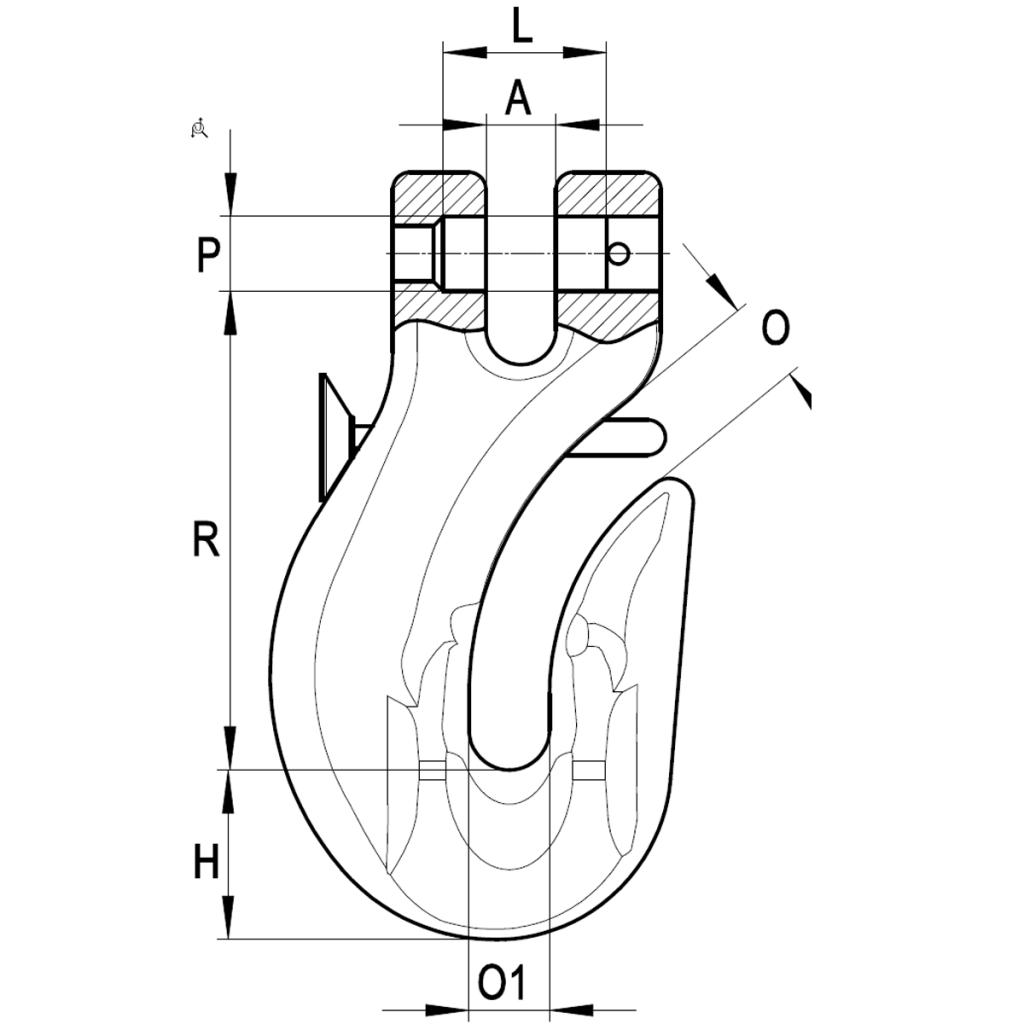

Specifications
Chain Size (mm) |
WLL (tonnes) |
A (mm) |
H (mm) |
O (mm) |
O1 (mm) |
R (mm) |
PxL (mm) |
N.W (kg) | Part No. | Marking |
7-8 | 2.5 | 9 | 23.5 | 9.5 | 10.5 | 66 | 9.6×23 | 0.6 | 41382 | GSC7-8-S 10 |
10 | 4 | 11.5 | 29 | 12.5 | 13.5 | 82 | 12.5×29.5 | 1.14 | 41383 | GSC10-S 10 |
13 | 6.7 | 14.5 | 39 | 16.5 | 15.5 | 106 | 16×37 | 2.1 | 41384 | GSC13-S 10 |
16 | 10 | 17.5 | 46 | 22 | 20 | 130 | 20×52 | 3.8 | 41385 | GSC16-S 10 |
19-20 | 16 | 22 | 57 | 26 | 24 | 162 | 24×73 | 7.35 | 41386 | GSC19-20-S 10 |
Applications
Used as a shortening device on chain slings, can also be used in back hooking (reeving) applications
