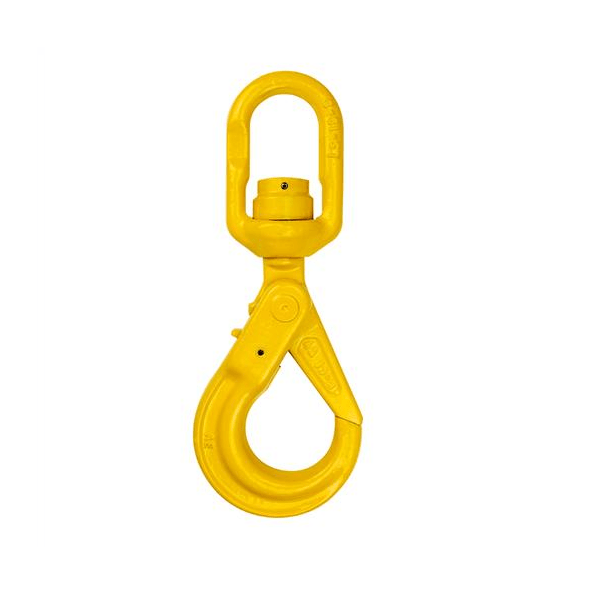

Grade 80 Eye Swivel Self-Lock Hook with ball bearing
Features
- Australian Standard: AS 3776
- Chain Size 6 – 26 mm
- Designed with ball bearing allowing the hook to swivel under load

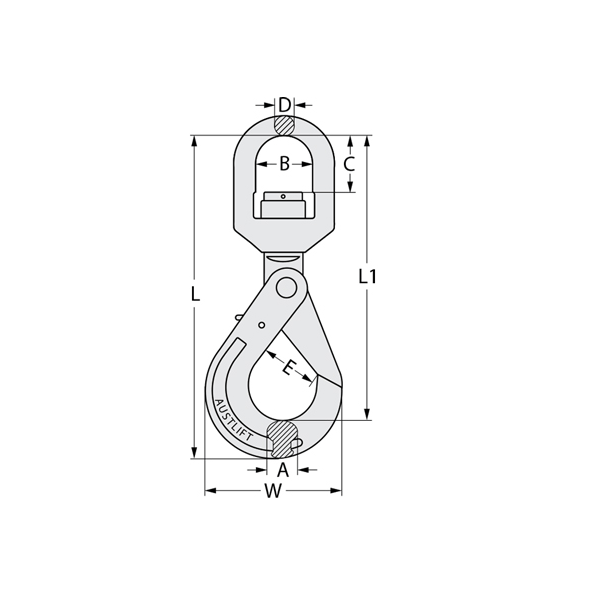

Specifications
| Chain Size (mm) | WLL (tonnes) |
K (mm) |
P (mm) |
B (mm) |
A (mm) |
D (mm) |
T (mm) |
H (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
| 6.0 | 1.1 | 149 | 29 | 22 | 31 | 12 | 15 | 19 | 0.7 | 40392Y | 8-027N-06 | YE 6 – 8 |
| 7.1/8.0 | 2.0 | 186 | 34 | 29 | 36 | 14 | 20 | 24 | 1.2 | 40375Y | 8-027N-07 | YE 7 + 8 – 8 |
| 10.0 | 3.2 | 220 | 44 | 34 | 40 | 16 | 26 | 30 | 2.0 | 40376Y | 8-027N-10 | YE 10 – 8 |
| 13.0 | 5.3 | 267 | 52 | 43 | 46 | 22 | 30 | 39 | 4.2 | 40377Y | 8-027N-13 | YE 13 – 8 |
| 16.0 | 8.0 | 328 | 60 | 50 | 60 | 24 | 36 | 49 | 7.3 | 40378Y | 8-027N-16 | YE 16 – 8 |
| 20.0 | 12.5 | 388 | 90 | 82 | 75 | 26 | 48 | 62 | 11.4 | 40393Y | 8-027N-20 | YE 18/20 – 8 |
| 22.0 | 15.0 | 457 | 80 | 95 | 97 | 33 | 49 | 63 | 18.1 | 40394Y | 8-027N-22 | YE 22 – 8 |
| 26.0 | 21.2 | 535 | 99 | 115 | 123 | 42 | 56 | 69 | 29.5 | 40395Y | 8-027N-26 | YE 26 – 8 |
Applications
Chain slings
