Grade 100 Eye Foundry Hook
Features
- Australian Standard: AS 3776
- Chain Size 7 – 20 mm
- For use where large throat openings are necessary.
- Test certificates supplied.
- Not used for general chain sling applications, rather for use where a large throat opening is necessary.
- This hook is suitable for foundry applications and unusually bulky attachment points.

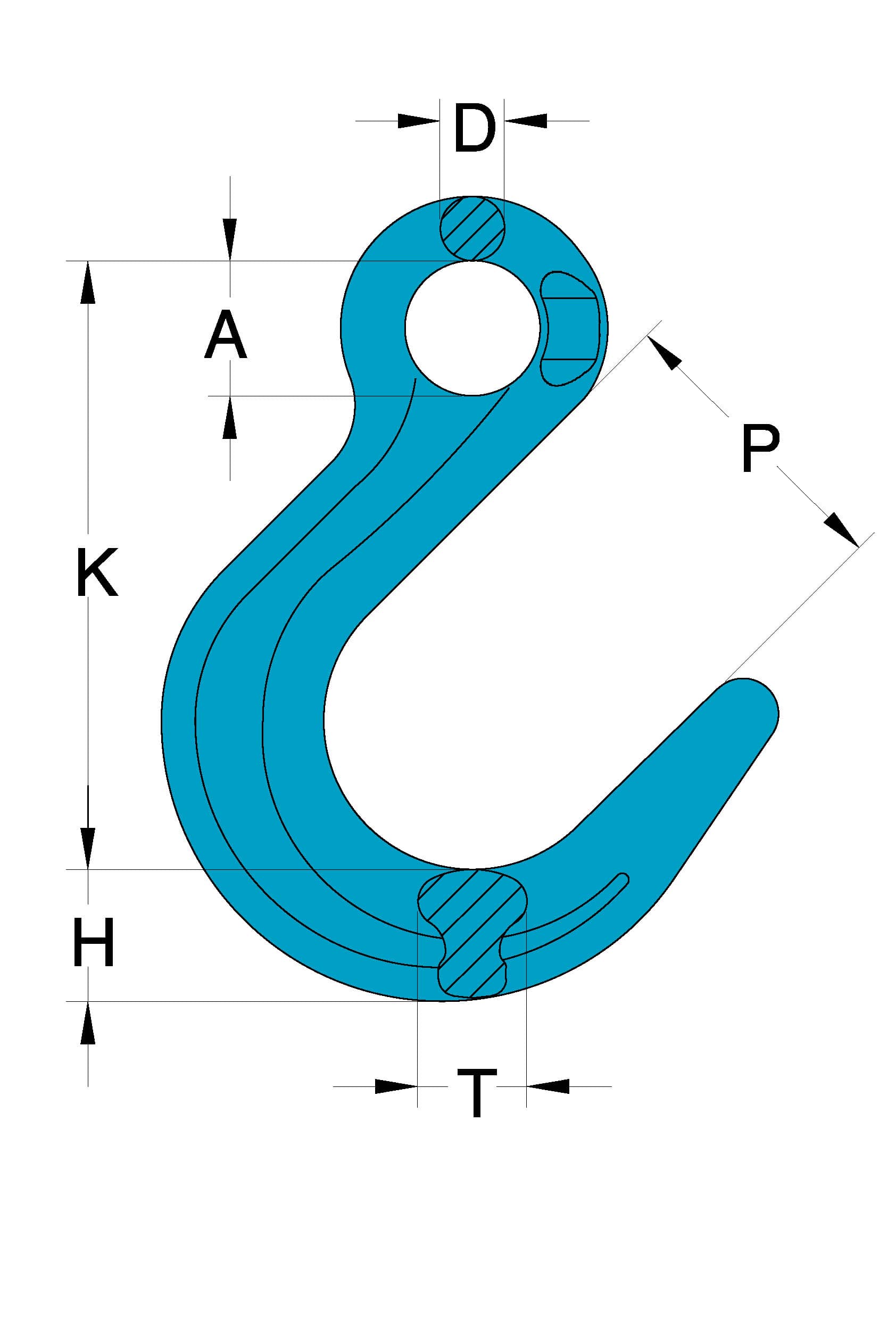

Specifications
| Chain Size (mm) |
WLL (tonnes) |
K (mm) |
P (mm) |
A (mm) |
D (mm) |
T (mm) |
H (mm) |
N.W (Kg) |
Marking | Part No. | Yoke Part No. |
| 7-8 | 2.5 | 123 | 62 | 24 | 12 | 19 | 27 | 0.8 | 7-8-10 9/32 | 42472 | X-047-07 |
| 10 | 4.0 | 149 | 74 | 32 | 15 | 23 | 32 | 1.6 | 10-10 3/8 | 42473 | X-047-10 |
| 13 | 6.7 | 180 | 88 | 40 | 19 | 32 | 39 | 2.5 | 13-10 1/2 | 42474 | X-047-13 |
| 16 | 10.0 | 213 | 98 | 50 | 25 | 41 | 47 | 4.4 | 16-10 5/8 | 42475 | X-047-16 |
| 20 | 16.0 | 248 | 113 | 60 | 26 | 46 | 57 | 9.3 | 20-10 3/4 | 42476 | X-047-20 |
Applications
This hook is suitable for foundry applications and unusually bulky attachment points.
