Girder Trolley

SuperLift engineering manufacture a wide range of trolleys for the transportation of materials or equipment along universal beams or R.S.J’s. These range in capacity from 250 Kg to 30,000 Kg and are of the push, geared, motorized or swivel type to suit all beam sizes.

Description
Geared Type Specifications
Push Type Specifications
Motorized Type Specifications

Push Girder Trolleys

Trolleys Incorporate the following features:

Anti derailment plates for added safety
Steel or High grade cast iron wheels
Double sealed ball bearings fitted to wheels
Universal wheels to suit either UB/C or R.S.J’s
Nameplates showing all relevant details
Painted SuperLift Industrial grey enamel

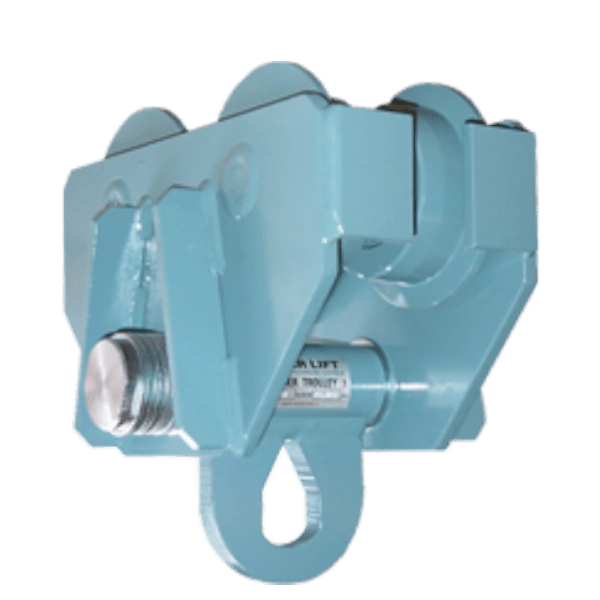

Push Type Trolley

Product Enquiry

Geared Girder Trolleys

The following points need to be specified when ordering Geared type Girder Trolley –

Beam flange width or type
If any special features are required.
Drop of hand chain.

Geared Girder Trolley

Product Enquiry

Motorized Girder Trolleys

SuperLift Motorized Girder Trolleys incorporate the following features:

Single and dual-speed models are available
Three-phase brake motors fitted as standard
Double insulated four-button pendant
Available with or without electrical controls
Steel or S.G. iron wheels fitted as standard
Various travel speeds are available
A standard drop of the pendant is 2.5 metres

Motorized Girder Trolley

Product Enquiry

Geared Type Specifications

WLL KG	Beam Flange Width (mm)	Product Code	A	B	C	D	E	F	G	H
1000	64-134	TR-51	190	70	123	60	30	214	14.5	105
1000	134-203	TR-51	190	70	123	60	30	214	14.5	105
1000	203-330	TR-53	190	70	123	60	30	283

2000	89-152	TR-101	262	105	149	90	30	239	14.5	105
2000	152-212	TR-101	262	105	149	90	30	239	14.5	105
2000	203-330	TR-103	262	105	149	90	30	290

3000	102-152	TR-151	310	115	184	100	30	239	14.5	110
3000	152-203	TR-153	310	115	184	100	30	290	14.5	110
3000	203-330	TR-153	310	115	184	100	30

5000	114-158	TR-201	356	145	215	130	35	277	21.5	127
5000	158-203	TR-203	356	145	215	130	35	323	21.5	127
5000	203-330	TR-203	356	145	215	130	35

8000	127-203	TR-251	434	173	327	155	55	374	27	130
8000	203-330	TR-253	434	173	327	155	55		27	130

10000	127-203	TR-301	454	173	248	155	58	368	27	136
10000	203-330	TR-303	454	173	248	155	58		27	136

Product Enquiry

Push Type Specifications

WLL KG	Beam Flange Width (mm)	Product Code	A	B	C	D	E	F	G

250	32-64	TR-1	140	55	85	50	20	140	8

500	64-108	TR-10	190	70	90	60	18	174	10.5
500	108-152	TR-10	190	70	90	60	18	218	10.5
500	152-280	TR-11	190	70	90	60	18		10.5

1000	64-134	TR-50	190	70	123	60	30	214	14.5
1000	134-203	TR-50	190	70	123	60	30	283	14.5
1000	203-330	TR-52	190	70	123	60	30		14.5

2000	89-152	TR-100	262	105	149	90	30	239	14.5
2000	152-212	TR-100	262	105	149	90	30	290	14.5
2000	203-330	TR-102	262	105	149	90	30		14.5

3000	102-152	TR-150	310	115	184	100	30	239	14.5
3000	152-203	TR-150	310	115	184	100	30	290	14.5
3000	203-330	TR-152	310	115	184	100	30

5000	114-158	TR-200	356	145	215	130	35	277	21.5
5000	158-203	TR-200	356	145	215	130	35	323	21.5
5000	203-330	TR-202	356	145	215	130	35		21.5

8000	127-203	TR-250	434	173	327	155	55	374	27
8000	203-330	TR-252	434	173	327	155	55		27

10000	127-203	TR-300	454	173	248	155	58	368	27
10000	203-330	TR-302	454	173	248	155	58		27
