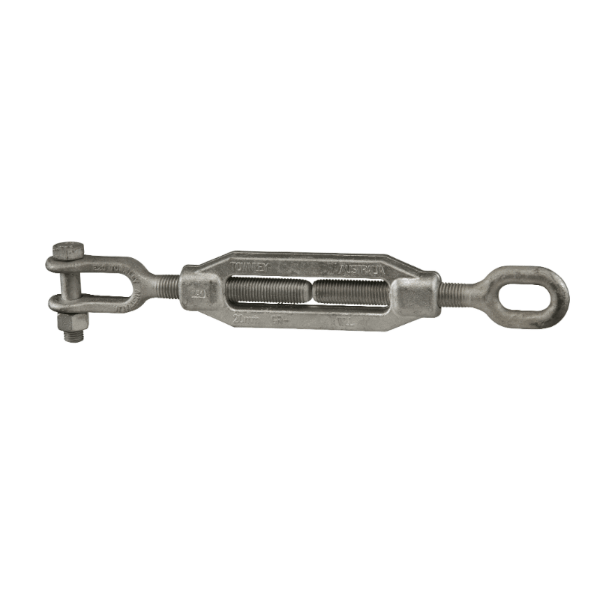

Turnbuckle Clevis & Eye
Features
- AS2319 – 2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Specifications
| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | B | C | D | F | G | H | J | K | Weight (kg) | Product Code |
| Grade L | 0.3 | M10 | 235 | 340 | 30 | 14 | 30 | 150 | 11 | 21 | 7 | 10 | 0.3 | TBCEL10 |
| Grade L | 0.5 | M12 | 330 | 470 | 36 | 15 | 35 | 190.5 | 15 | 30 | 9 | 10 | 0.7 | TBCEL12 |
| Grade L | 0.75 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 17 | 36 | 12 | 12 | 1.5 | TBCEL16 |
| Grade L | 1.25 | M20 | 390 | 520 | 55 | 22 | 46 | 215.5 | 21 | 42 | 14 | 16 | 2.5 | TBCEL20 |
| Grade L | 2.5 | M24 | 445 | 580 | 69 | 30 | 58 | 232 | 25 | 51 | 17 | 20 | 4 | TBCEL24 |
| Grade L | 5 | M33 | 643 | 793 | 78 | 38 | 76 | 252 | 33 | 70 | 24 | 24 | 7.5 | TBCEL33 |
| Grade L | 5 | 1.25 | 525 | 690 | 70 | 38 | N/A | 255 | 33 | 67 | 22 | 25 | 7.11 | TBCEL1250 |
| Grade L | 6 | 1.5 | 570 | 740 | 70 | 48 | N/A | 275 | 38 | 72 | 25 | 32 | 11.62 | TBCEL1500 |
| Grade P | 0.6 | M10 | 235 | 340 | 30 | 14 | 30 | 150 | 11 | 21 | 7 | 10 | 0.3 | TBCE10P |
| Grade P | 1 | M12 | 330 | 470 | 36 | 15 | 35 | 190.5 | 15 | 30 | 9 | 10 | 0.7 | TBCE12P |
| Grade P | 1.6 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 17 | 36 | 12 | 12 | 1.5 | TBCE16P |
| Grade P | 2.5 | M20 | 390 | 520 | 55 | 22 | 46 | 215.5 | 21 | 42 | 14 | 16 | 2.5 | TBCE20P |
| Grade P | 4 | M24 | 445 | 580 | 69 | 30 | 58 | 232 | 25 | 51 | 17 | 20 | 4 | TBCE24P |
| Grade P | 8 | M33 | 643 | 793 | 78 | 38 | 76 | 252 | 33 | 70 | 24 | 24 | 7.5 | TBCE33P |
| Grade S | 0.8 | M10 | 235 | 340 | 30 | 14 | 30 | 150 | 11 | 21 | 7 | 10 | 0.3 | TBCE10S |
| Grade S | 1.2 | M12 | 330 | 470 | 36 | 15 | 35 | 190.5 | 15 | 30 | 9 | 10 | 0.7 | TBCE12S |
| Grade S | 2 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 17 | 36 | 12 | 12 | 1.5 | TBCE16S |
| Grade S | 3.2 | M20 | 390 | 520 | 55 | 22 | 46 | 215.5 | 21 | 42 | 14 | 16 | 2.5 | TBCE20S |
| Grade S | 5 | M24 | 445 | 580 | 69 | 30 | 58 | 232 | 25 | 51 | 17 | 20 | 4 | TBCE24S |
| Grade S | 10 | M33 | 643 | 793 | 78 | 38 | 76 | 252 | 33 | 70 | 24 | 24 | 7.5 | TBCE33S |
