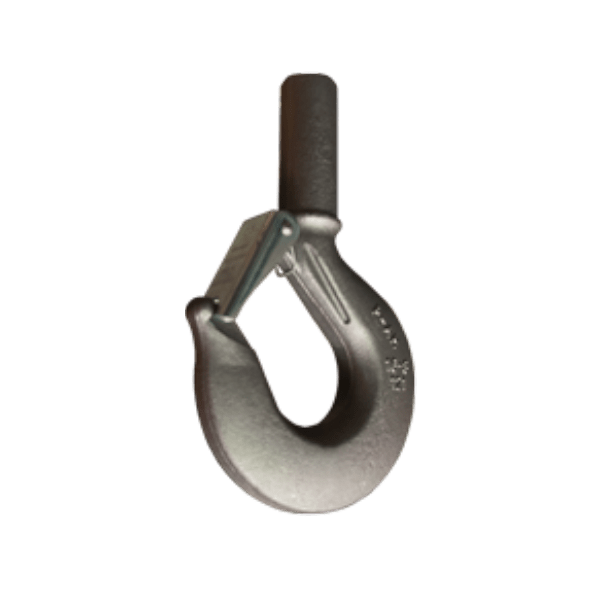

Rigging Hooks Alloy Shank
Features
- Can be supplied machined.
- Safety latch fitted as standard.
- Painted SuperLift black enamel.
Optional Features – P.O.A
- Special shank hooks can be manufactured for example extended shanks
- Machining of shank hooks available

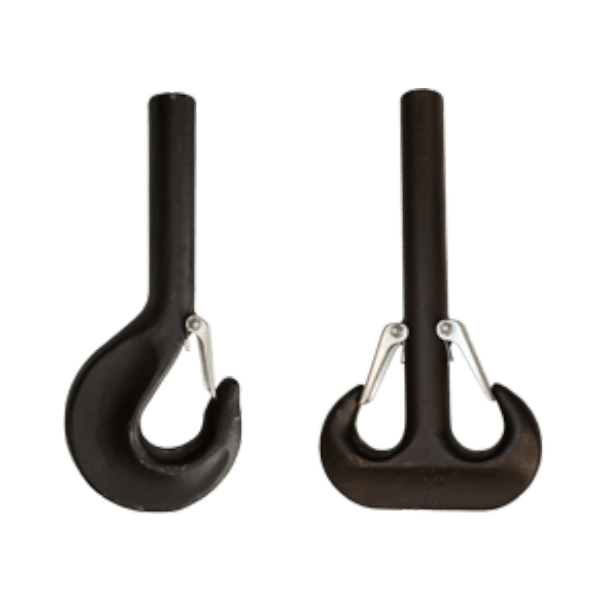

- Single, duplex rams horn, Din / Euro style hooks to 1000 tonne
Specifications

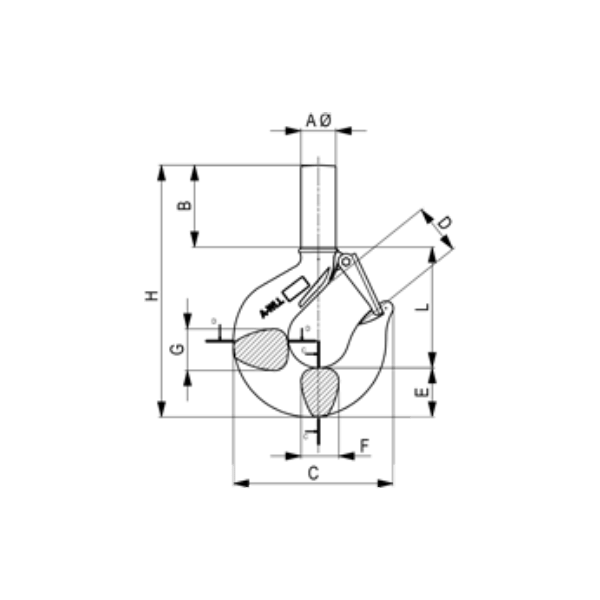

W.L.L. | PRODUCT | A | B | C | D | E | F | G | H | L | U/W |
CODE | KG | ||||||||||
1.25t | SH0100 | 15 | 49 | 77 | 24 | 21 | 15 | 15 | 129 | 59 | 0.35 |
1.6t | SH0150 | 17 | 57 | 82 | 26 | 23 | 18 | 18 | 147 | 67 | 0.5 |
2.5t | SH0200 | 19 | 64 | 94 | 27 | 27 | 23 | 23 | 164 | 73 | 0.78 |
3.2t | SH0300 | 23 | 69 | 106 | 32 | 31 | 23 | 24 | 182 | 82 | 1.1 |
5.4t | SH0450 | 29 | 81 | 132 | 40 | 37 | 30 | 34 | 216 | 98 | 2.05 |
8t | SH0700 | 36 | 92 | 165 | 51 | 49 | 37 | 37 | 267 | 126 | 3.9 |
11.5t | SH1100 | 43 | 101 | 198 | 58 | 60 | 43 | 46 | 318 | 157 | 7 |
16t | SH1600 | 48 | 112 | 222 | 66 | 67 | 52 | 57 | 346 | 167 | 9.65 |
22t | SH2200 | 59 | 135 | 283 | 87 | 80 | 64 | 65 | 425 | 210 | 18.5 |
30t | SH3000 | 85 | 244 | 339 | 97 | 94 | 80 | 80 | 588 | 250 | 37.5 |
Applications
Shank Hooks are the main component for blocks, swivel hooks, hoists and special lifting devices. The range covers from 1 Tonne to 1000 Tonne.
