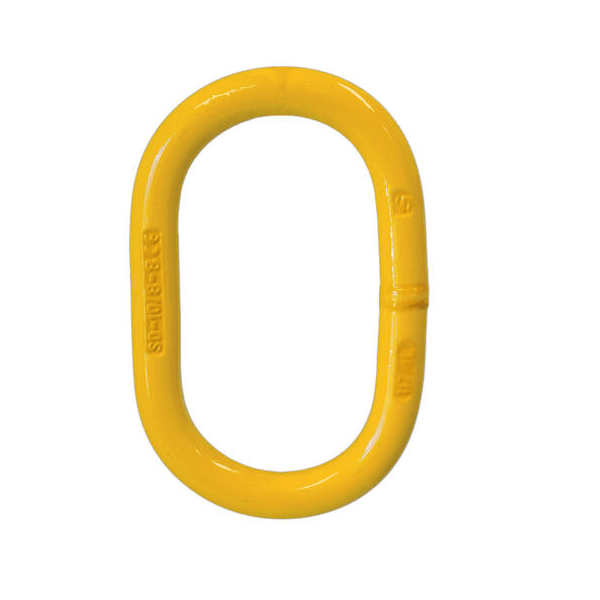

Grade 80 Regular Series Oblong Link
Features
- Australian standard: AS 3776
- The PWB® range of Herc-Alloy oblong links allows for the flexibility in selection and construction of chain sling or wire rope assemblies.
- For use in both single and 2-leg applications.
- All Regular Series Oblong Links are manufactured in Australia.
- Includes standard markings of either PWB-HA800 or PWB-HA8.
Specifications
| Chain Size | Chain Size | WLL | H | J | K | Mass | Part No. | Markings |
| 1 Leg (mm) | 2 Leg (mm) | (tonnes) | (mm) | (mm) | (mm) | (kg) | ||
| 6.0-10.0 | 6.0-8.0 | 3.5 | 88 | 44 | 13 | 0.3 | 40490 | 10-40490-8 |
| 13 | 10 | 5.5 | 114 | 57 | 20 | 0.9 | 40491 | 13-40491-10 |
| 16 | 13 | 9.2 | 130 | 70 | 22 | 1.2 | 40492 | 16-40492-13 |
| 20 | 16 | 13.8 | 160 | 80 | 30 | 2.7 | 40493 | 20-40493-16 |
| 26 | 22 | 26 | 200 | 100 | 40 | 5.5 | 40495 | 26-40495-22 |
