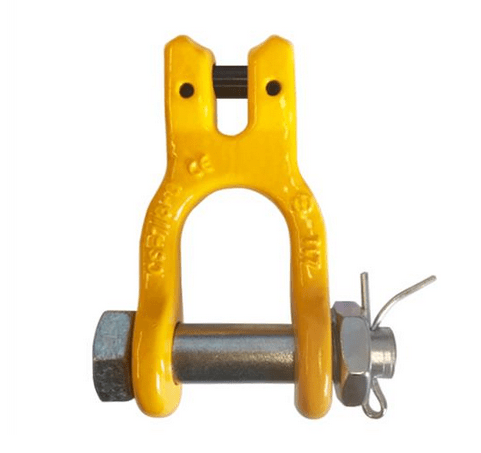

Grade 80 Clevis Shackle

Features

  • Australian Standard: AS 3776
  • Chain Size 7 -16 mm
  • A general purpose hook that can be mechanically coupled for easy assembly and use.
  • Hooks without a latch are generally used for specific applications, ie. not for lifting use.
  • Where there is a risk of the hooks becoming detached during use, a risk assesment shall be conducted in accordance with Section 11 of AS 3776.









Specifications

Chain Size
(mm)
WLL
(tonnes)
A
(mm)
K
(mm)
P
(mm)
T
(mm)
H
(mm)
Mass
(kg)
Part No.  Yoke Part No. Markings
7.1/8.0 2.0 9 80 19 18 22 0.5 40395  8-097-07 FE  7+8 -8
10.0 3.2 11 105 26 24 26 0.9 40396  8-097-10 FE 10-8
13.0 5.3 14 138 34 32 34 2.1 40397  8-097-13 FE 13-8
16.0 8.0 18 170 38 37 45 3.6 40398  8-097-16 FE 16-8

Applications

Logging
