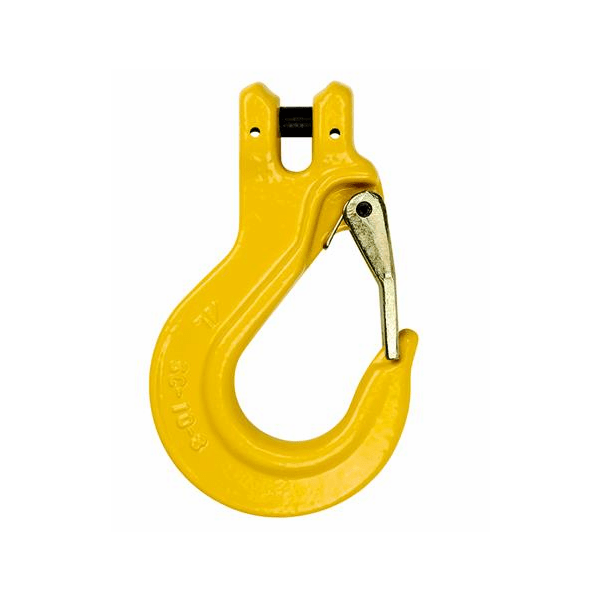

Grade 80 Clevis Sling Hook with Latch
Features
- Australian Standard: AS 3776
- Chain Size 6 – 20 mm
- Fitted with sturdy spring loaded safety latch for added security in lifting.

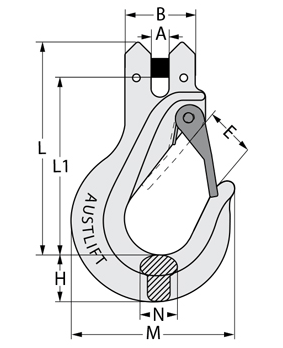

Specifications
| Chain Size (mm) | WLL (tonnes) |
K (mm) |
P (mm) |
B (mm) |
A (mm) |
D (mm) |
T (mm) |
H (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
| 6.0 | 1.1 | 136 | 24 | 23 | 32 | 11 | 16 | 19 | 0.6 | 41046Y | 8-049N-06 | YSW 6 – 8 |
| 7.1/8.0 | 2.0 | 155 | 26 | 27 | 36 | 12 | 18 | 22 | 0.9 | 41047Y | 8-049N-07 | YSW 7 + 8 – 8 |
| 10.0 | 3.2 | 189 | 36 | 37 | 41 | 16 | 23 | 29 | 1.6 | 41048Y | 8-049N-10 | 10 – 8 YSW |
| 13.0 | 5.3 | 233 | 42 | 40 | 46 | 21 | 28 | 35 | 3.1 | 41049Y | 8-049N-13 | 13 – 8 YSW |
| 16.0 | 8.0 | 280 | 50 | 50 | 60 | 22 | 35 | 44 | 5.3 | 41050Y | 8-049N-16 | 16 – 8 YSW |
| 20.0 | 12.5 | 356 | 56 | 82 | 74 | 25 | 49 | 65 | 9.2 | 41251Y | 8-049N-20 | YSW 18/20 – 8 |
Applications
Chain slings.
