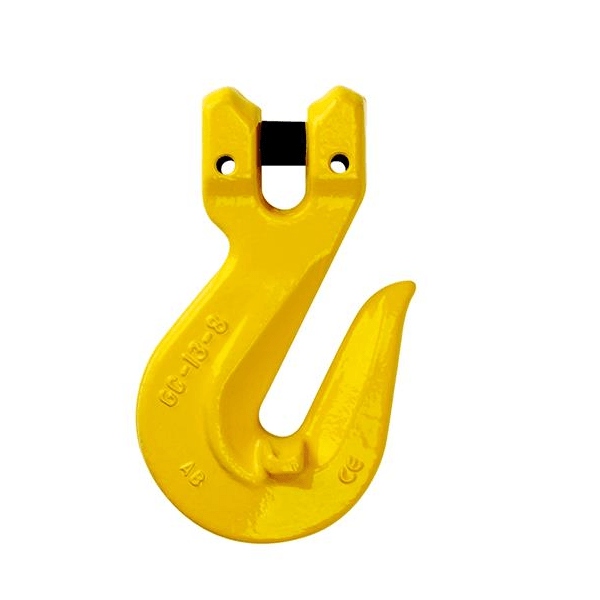

Grade 80 Clevis Cradle Grab Hook
Features
- Australian Standard: AS 3776
- Chain Size 6 – 20 mm
- No reduction in WLL when used as a shortening hook on cradle type with supporting wings.

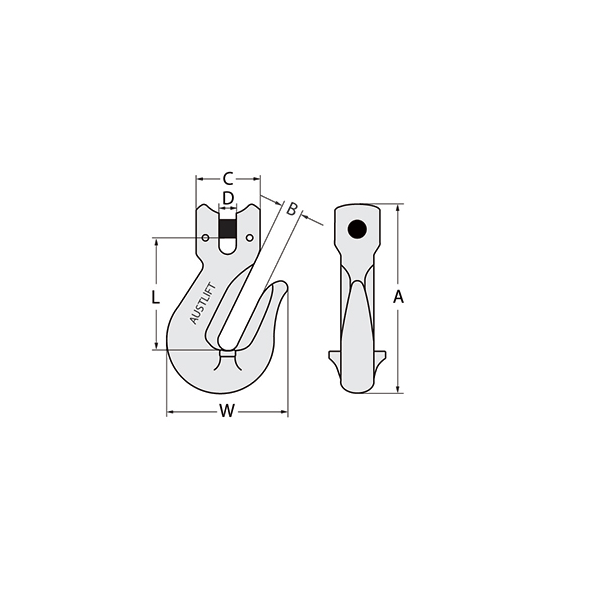

Specifications
Chain Size (mm) |
WLL (tonnes) |
A (mm) |
P (mm) |
K (mm) |
H (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
6.0 | 1.1 | 7 | 7 | 41 | 16 | 0.2 | 42258Y | 8-042-06 | YK 6 – 8 |
7.1/8.0 | 2.0 | 9 | 10 | 55 | 25 | 0.3 | 40379Y | 8-042-07 | YK 7 + 8 – 8 |
10.0 | 3.2 | 12 | 13 | 77 | 35 | 0.8 | 40380Y | 8-042-10 | YK 10 – 8 |
13.0 | 5.3 | 15 | 16 | 97 | 42 | 1.6 | 40381Y | 8-042-13 | YK 13 – 8 |
16.0 | 8.0 | 17 | 20 | 102 | 45 | 2.8 | 40382Y | 8-042-16 | YK 16 – 8 |
20.0 | 12.5 | 23 | 23 | 124 | 54 | 5.0 | 40383Y | 8-042-20 | YK 20 – 8 |
Applications
Shortening and reeving of chain slings.
