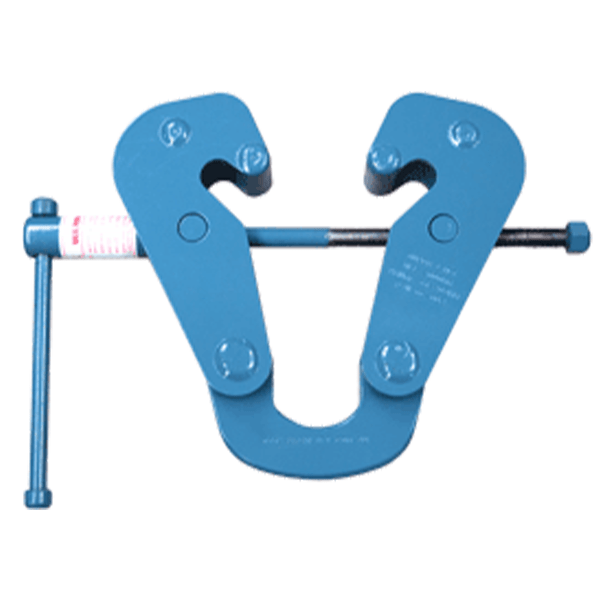

Girder Clamps
SuperLift Girder Clamps incorporate the following standard features:
- Light weight heavy duty all steel construction
- Quick method of attaching clamp to beam
- Adjustable to suit most beam sizes
- Unique hanger arrangement ( no need for shackles )
- Painted SuperLift industrial grey enamel
- Fitted with name plates showing all relevant details
| W.L.L. KG. | GIRDER WIDTH mm |
PRODUCT CODE | APPROX HEADROOM | WEIGHT KG. | A* | B* | C | D |
|---|---|---|---|---|---|---|---|---|
| 2000 | 64 - 203 | GC - 002 | 125mm | 5 | 140 | 190 | 44 | 225 |
| 4000 | 102 - 230 | GC - 003 | 165mm | 10.5 | 178 | 254 | 65 | 274 |
| 8000 | 114 - 304 | GC - 004 | 250mm | 20 | 250 | 300 | 88 | 365 |
| 10000 | 200 - 500 | GC - 006 | 230mm | 37.6 | 285 | 491 | 92 | 462 |
| 15000 | 200 - 500 | GC - 007 | 240mm | 42 | 290 | 550 | 96 | 535 |
