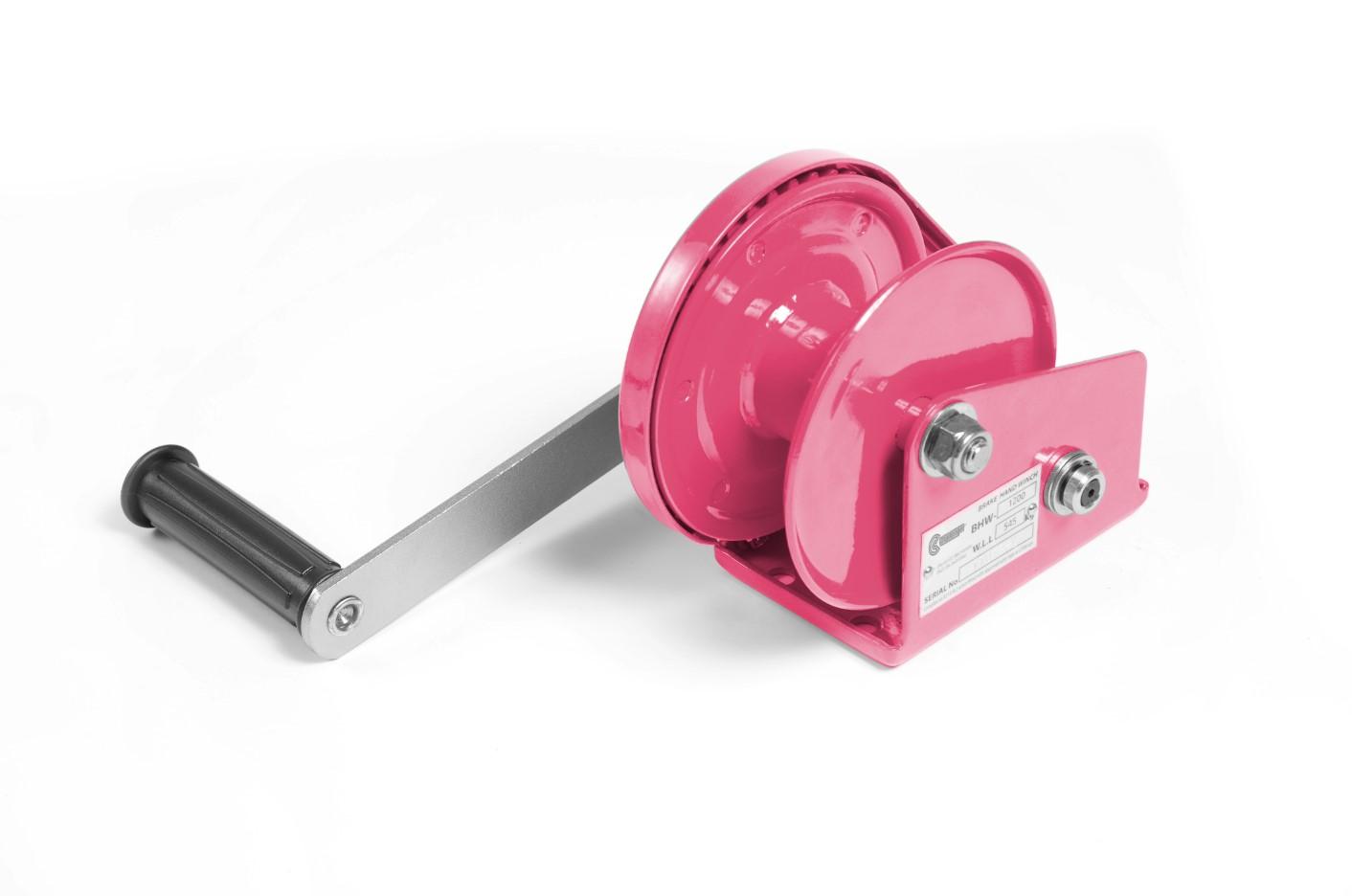

Challenger Brake Winch
Challenger Brake Winch
Compact, lightweight and rugged construction.
Mechanical components enclosed for protection and safety through one-piece designed frame.
Challenger Brake Winch
Challenger Brake Winches are manufactured of high quality material and comply to the Australian Standard AS1418.2 when correctly fitted with approved wire rope and fittings.
They can be used for both lifting and pulling purposes and are a compact, lightweight and a cost-effective solution for a variety of applications. Featuring a high quality powder coated finish, these winches represent the best value for money in the market.
Key Features
- All Challenger models are manufactured to comply with AS1418.2 when correctly fitted with approved
wire rope and fittings - Positive Weston-style brake will hold the load in any position
- Compact, lightweight and rugged construction
- Mechanical components enclosed for protection and safety through one-piece designed frame
- Baked enamel and plated finish
- Heat-treated gears
- Strong removable handles
- High precision construction minimises gear noise
Specifications
| Model | CBW080 | CBW120 | CBW180 | CBW260 |
| Pulling Capacity (kg) | 370 | 545 | 820 | 1200 |
| Lifting Capacity (kg) | 180 | 270 | 410 | 600 |
| Hand Force Required (kg) | 14.5 | 15 | 22 | 19 |
| Finish | Powder Coated | Powder Coated | Powder Coated | Powder Coated |
| Gear Ratio | 4.1 : 1 | 4.1 : 1 | 5.0 : 1 | 10:01 |
| Handle Length (mm) | 155 | 208 | 319 | 319 |
| Hub Diameter (mm) | Ø40 | Ø48 | Ø60 | Ø75 |
| Cable Diameter (mmxmm) | Ø4.0 x 36 | Ø5.0 x 23 | Ø6.0 x 22 | Ø8.0 x 16 |
| Net. Weight (kg | 3 | 3.3 | 8 | 10.3 |
