Flat Slings 1 Ply

Features Flat Slings 1 Ply

  • Flat Slings 1 Ply are Certified to AS1353.
  • Single ply flat slings are manufactured with reinforced eyes for greater durability.
Product Enquiry

Flat Slings 1 Ply

  • Certified to AS1353.
  • Single ply flat slings are manufactured with reinforced eyes for greater durability.
  • Wide load bearing surface to minimize damage to fragile loads.
  • Lightweight for enhanced manual handling safety.
  • Excellent strength to weight ratios.
  • Light and flexible for good access in awkward situations.

Product Enquiry

Specifications

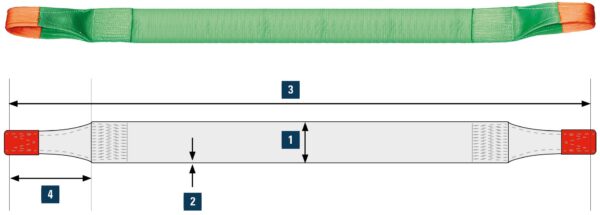

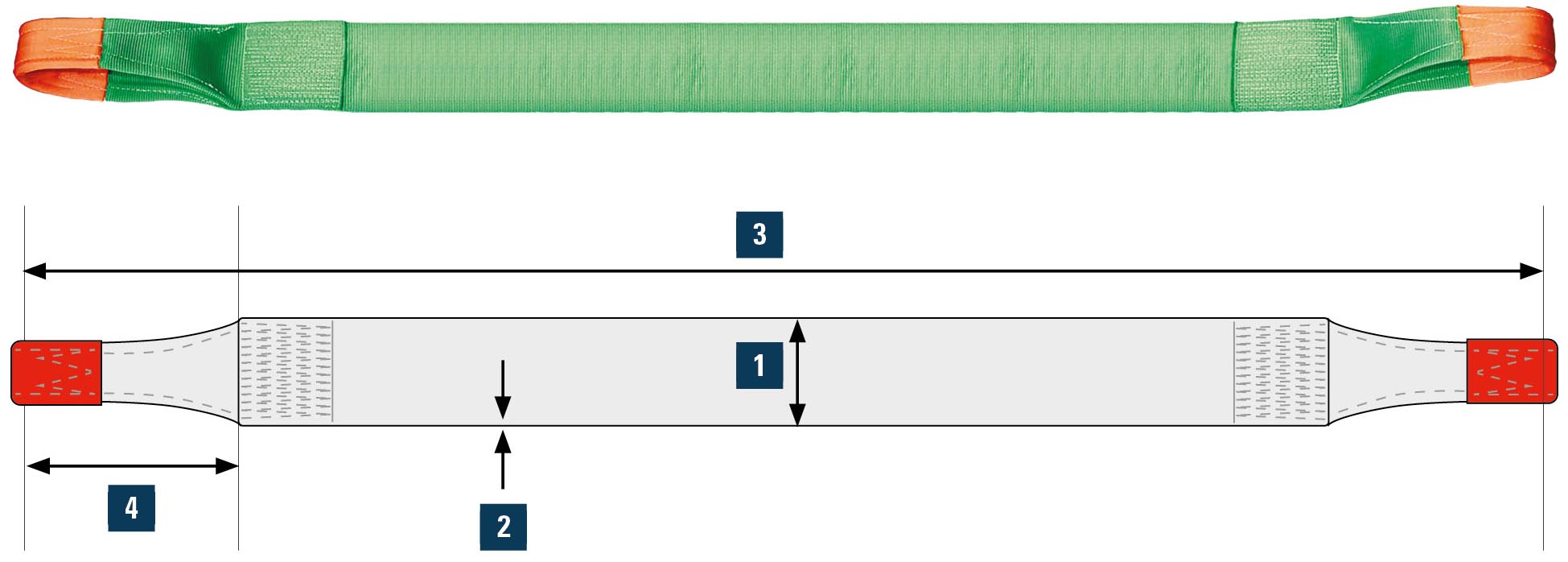

Colour/ Code Rated WLL (kg) Width (mm) Thickness (mm) Min Sling Length (mm) Min Eye Length (mm) Min Pin Diameter (mm) Min Load Edge Diameter
(mm)
 A0500 500 50 3 845 250 3 9
 A1000 1,000 75 4 1240 350 4 12
 A2000 2,000 140 4 1750 500 4 12
 A3000 3,000 180 4 2400 800 4 12
 A4000 4,000 240 4 3000 1000 4 12
 A5000 5,000 300 4 3300 1200 4 12



Colour/ Code Rated WLL (kg) 1 metre 2 metre 3 metre 4 metre 5 metre 6 metre 8 metre
 A0500 500 A0500-0x1.0 A0500-0x2.0 A0500-0x3.0 A0500-0x4.0 A0500-0x5.0 A0500-0x6.0 A0500-0x8.0
 A1000 1,000 A0500-0x1.0 A1000-0x2.0 A1000-0x3.0 A1000-0x4.0 A1000-0x5.0 A1000-0x6.0 A1000-0x8.0
 A2000 2,000 A2000-0x2.0 A2000-0x3.0 A2000-0x4.0 A2000-0x5.0 A2000-0x6.0 A2000-0x8.0
 A3000 3,000 A3000-0x3.0 A3000-0x4.0 A3000-0x5.0 A3000-0x6.0 A3000-0x8.0
 A4000 4,000 A4000-0x3.0 A4000-0x4.0 A4000-0x5.0 A4000-0x6.0 A4000-0x8.0
 A5000 5,000 A5000-0x3.0 A5000-0x4.0 A5000-0x5.0 A5000-0x6.0 A5000-0x8.0



Colour/ Code secutex Code Single Sided Interior Width (mm) Exterior Width (mm) Exterior Height Weight Per Run Metre
 A1000 SF1-75 75 95 22 1.3
 A2000 SF1-150 150 160 22 2.1
 A3000 SF1-200 200 200 35 2.7
 A4000 SF1-250 250 260 35 3.2
 A5000 SF1-300 300 325 35 4.0



Colour/ Code secutex Code Single Sided Interior Width (mm) Exterior Width (mm) Exterior Height Weight Per Run Metre
 A1000 SF2-75 75 95 95 1.8
 A2000 SF2-150 150 160 160 3.0
 A3000 SF2-200 200 200 35 3.3
 A4000 SF2-250 250 260 35 4.2
 A5000 SF2-300 300 325 35 6.0



Colour/ Code secutex Code Single Sided Interior Width (mm) Exterior Width (mm) Exterior Height Weight Per Run Metre
 A1000 SC-75 75 95 95 1.6
 A2000 SC-150 150 160 160 2.6
 A3000 SC-200 200 200 35 3.3
 A4000 SC-250 250 260 35 4.2
 A5000 SC-300 300 325 35 6.0

Working Load Limit Chart (WLL)

Download Working Load Limits Pocket Chart for Slings, Shackles & Collard Eyebolts

Working Load Limit Chart Flat Slings
