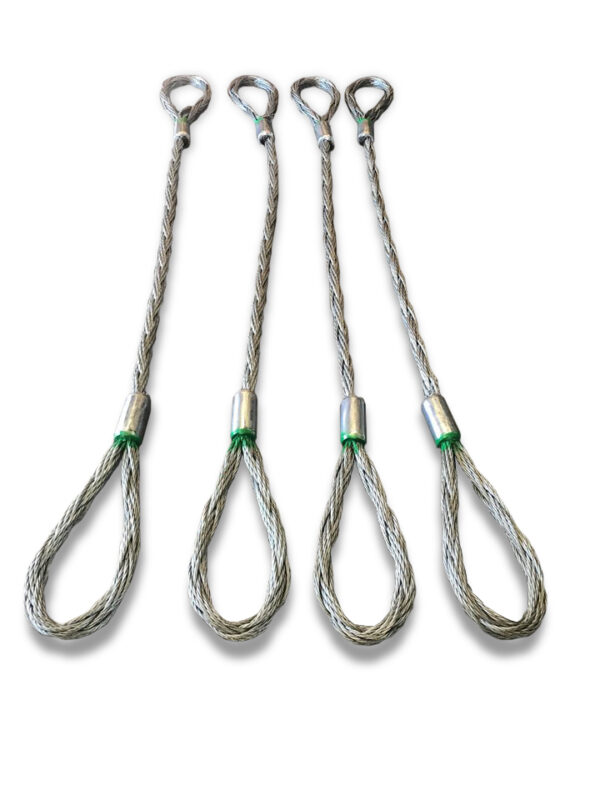

Super Flex Wire Rope Slings – Aluminium Ferrules

Features Super Flex Wire Rope Slings Aluminium Ferrules

Super Flex Wire Rope Slings – Aluminium Ferrules are well suited to irregular shaped loads for both basket and choker configurations.

Superflex slings  are  used for general lifting purposes where a flexible steel sling is required

Tapered steel ferrules available upon request

See our other ranges of lifting slings.



Product Enquiry










Superflex Wire Rope Slings -Aluminium Ferrules

Superflex Slings are more versatile than conventional wire rope and more robust than synthetic.  They are made from high tensile superflex steel cable with supreme flexibility.  Furthermore, they are suitable for straight, multi-leg, cradle and choker lifts to maximum cradle lift WLL of 55.7 tonnes.  Thinner than aluminum, suitable for underground, marine or caustic environments with no exposed wire tails for greater safety. Tapered steel ferrules available upon request.

Additional information

WLL

1, 1.5, 1.8, 2.4, 3, 4.1, 5.2, 6.7, 10.3, 15.3, 21.6, 28.3, 42.1, 58.5, 84.3

CABLE SIZE

Two-5 (10mm), Three-0 (12mm), Three-5 (14mm), Four-0 (16mm), Four-5 (18mm), Five-0 (20mm), Five-5 (22mm), Six-5 (26mm), Eight-0 (32mm), Ten-0 (40mm), Twelve-0 (48mm), Fourteen-0 (56mm), Seventeen-0 (68mm), Twenty-0 (80mm), TwentyFour-0 (96mm)

Specifications

Chain Size
(mm)
WLL
(tonnes)
Fitting
10mm Two-5 1.0 Aluminium Ferrules or Steel Ferrules
12mm Three-0 1.5 Aluminium Ferrules or Steel Ferrules
14mm Three-5 1.8 Aluminium Ferrules or Steel Ferrules
16mm Four-0 2.4 Aluminium Ferrules or Steel Ferrules
18mm Four-5 3.0 Aluminium Ferrules or Steel Ferrules
20mm Five-0 4.1 Aluminium Ferrules or Steel Ferrules
22mm Five-5 5.2 Aluminium Ferrules or Steel Ferrules
26mm Six-5 6.7 Aluminium Ferrules or Steel Ferrules
32mm Eight-0 10.3 Aluminium Ferrules or Steel Ferrules
40mm Ten-0 15.3 Aluminium Ferrules
48mm Twelve-0 21.6 Aluminium Ferrules
56mm Fourteen-0 28.3 Aluminium Ferrules
68mm Seventeen-0 42.1 Aluminium Ferrules
80mm Twenty-0 58.5 Aluminium Ferrules
96mm TwentyFour-0 84.3 Aluminium Ferrules

Application

  •  Used for general lifting purposes where a flexible steel sling is required

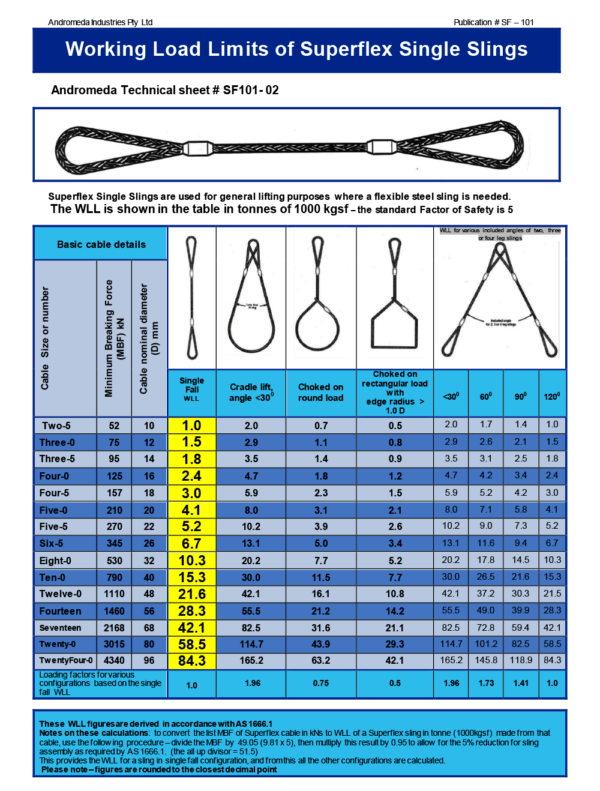

Working Load Limit Chart

Superflex Wire Rope WLL Chart
