Confined Space Kit

Features.

The Ferno Confined Space Kit comes complete with all components to complete confined space entry, retrieval and rescue and is ideal for applications in tanks, manholes and other vertical entry areas. One of our most popular kits, the Confined Space Kit represents exceptional value.

Models

FWE-CSK:    Confined Space Rescue Kit with Industripod tripod
FWE-CSK+:  Confined Space Rescue Kit with Industripod+ (with two integrated pulleys) tripod – not illustrated

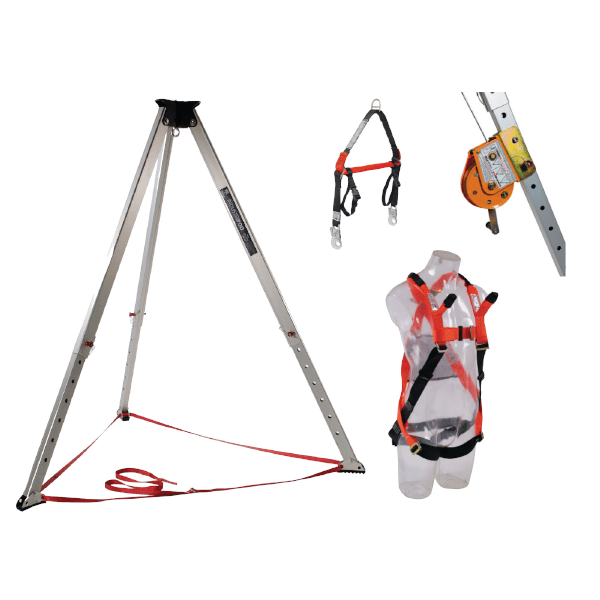

Kit Features

  • Ferno IndustriPOD – one of the strongest tripods on the market with 550 kg load off centre eyebolt OR Ferno IndustriPOD+ – features two integrated pulleys for fibre or steel cable
  • Type 2 Winch – Intuitive wind up/down mechanism with 10 m of 6 mm galvanised steel cable and screwgate karabiner. 20 m and 25 m lengths also available)
  • Hi-Safe FH50 Full Body Harness – fully adjustable, multi-size fit, front and rear fall arrest attachment points plus con space attachment points
  • Ferno Spreader Bar – attaches to confined space pick up points on the harness shoulder straps



Product Enquiry

Specifications

FWE-CSK

FWE-CSK+

      IndustriPOD

  • SWL: 550 kg off centre eyebolt
  • SWL: 360 kg off side plate anchor points
  • Height: 1650 mm (Min)  2465 mm (Max)
  • Footprint: 2187 mm (Inside dia.)  2523 mm (outside dia)
  • Weight: 23 kgs
      IndustriPOD+

  • SWL: 220 kg pulley over leg
  • SWL: 360 kg off side plate anchor points
  • Height: 1750 mm (Min)  2565 mm (Max)
  • Footprint: 2187 mm (Inside dia.)  2523 mm (outside dia)
  • Weight: 25 kgs
1 x Type 2 Winch 1 x Type 2 Winch
2 x FH50 Full Body Harness (AS/NZS 1891.1:2007) 2 x FH50 Full Body Harness (AS/NZS 1891.1:2007)
1 x FERNO Spreader Bar 1 x FERNO Spreader Bar
