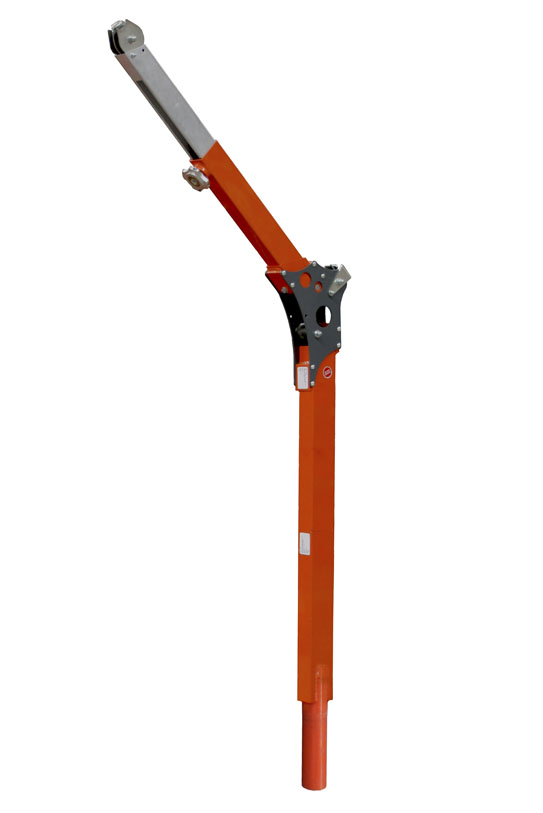

PRO-3G Davits

Features

  • Lightweight material graded 6061-T6 Aluminum
  • Powder-coated Safety Orange to increase visability around a workplace
  • Modular in construction with no one component heavier than 10kg
  • Easy to store and can be transported by 1-person
  • Built in fall and davit overload indicator
  • Multi-offset mast with a variable reach from 0.5mtrs to 0.7mtrs
  • No special tools required for assembly or disassembly
  • Can be set-up for use with both man-rated and material-rated applications to a max WLL of 140kg – (Material Rating Only)
  • Available with optional mast extender to increase overall height of offset anchor point by additional 600mm
  • Suits both fixed and portable davit bases with a mast rotation of 360degrees
  • Rated secondary anchor point on vertical mast for connection by the winch operator or stand-by person
  • Quick release winch interface brackets to suit all BTS winches and other reputable winch brands in the market
  • Complies with product design, manufacturing and testing requirements of AS/NZS1891.4, AS/NZS 5532-2013 & CE EN795













Specifications

Specifications

Ultimate Strength Rating: 18kN
Capacity (Rescue): Max. 1 worker weighing not more than 136kg each.*
Capacity (Fall Arrest): Max. 1 worker weighing not more than 136kg.*
Allowable MAF Rating for SRL’s: 4kN



* Capacities quoted when used in conjunction with a man rated winch



PRO-3 DAVITS
Part No. Model Description Reach (m) Height (m)
30106 PRO-3G Davit – 2.2m c/w Quick Release Double Sided Universal Male Interface Bracket 0.5 – 0.7 1.9 – 2.2
30107 PRO-3G Plus Davit – 2.2m 3 piece + 600mm Extension Post c/w Quick Release Double Sided Universal Male Interface Bracket 0.5 – 0.7 2.5 – 2.8
30108 PRO-3G Plus Davit – 2.2m 2 piece c/w Quick Release Double Sided Universal Male Interface Bracket 0.5 – 0.7 1.9 – 2.2



PRO-3 DAVIT SPARE PARTS
Part No. Model Description
30106B PRO-3G Davit – Section Boom
30106C PRO-3G Davit – Section Elbow
30106D PRO-3G Davit – Section Mast
60202UA Quick Release Double Sided Universal Male Interface Bracket
30106A PRO-3G Plus – 600mm Extension Post Only



PRO-3 DAVIT ACCESSORIES
Part No. Model Description
60202UF Female Single Pro-3G Uni Interface Davit Winch Bracket
60202UI IKAR PRO-3G Davit Bracket c/w Female Single Interface Brackets
GO TO WINCH PAGE BTECH Man / Materials Rated Winch 18, 30, 45, 60, 76 & 90m wire rope
SSJC-C820 S/S Material Winch c/w Female Interface Bracket with 18m x 6mm HDG W/R with G80 Swivel S/L HK
SSJC-C820S S/S Material Winch c/w Female Interface Bracket with 18m x 6mm S/S W/R with G100 Swivel S/L HK
HRA-12TA, HRA-18TA
HRA-24TA
KAR Recovery Winch 12, 18 or 24 metre
PRO-3GDAVITS/BOX Aluminium Equipment Storage Box for PRO-3G Davit
40003B BTECH Storage/Carry Bag
