Flat Slings 4 Ply
Flat Slings 4 Ply Features
Manufactured and certified to AS1353.1 with reinforced eyes for greater durability.
Product EnquiryFlat Slings 4 Ply
- Manufactured and certified to AS1353.1 with reinforced eyes for greater durability
- Wide load bearing surface to minimize damage to fragile loads
- Lightweight for enhanced manual handling safety
- Excellent strength to weight ratio
- Light and flexible for good access in awkward situations
- More lifting power due to four layers
- Heavy-duty flat sling 12 tonne up to 20 tonne
- No damage during lifting due to wide supporting surface
- Optional with loop or D-ring
- Optimum handling due to low weight
- Exceptional lateral strength
- Certified to AS1353.1
Additional information
Dimensions | N/A |
---|---|
Length | 1m, 2m, 3m, 4m, 5m, 6m, 8m |
WLL | 12000, 16000, 20000 |
Specifications
Colour/ Code |
Rated WLL (kg) | 1 metre | 2 metre | 3 metre | 4 metre | 5 metre | 6 metre | 8 metre |
CS12000 | 12,000 | CS12000-0x1.0 | CS12000-0x2.0 | CS12000-0x3.0 | CS12000-0x4.0 | CS12000-0x5.0 | CS12000-0x6.0 | CS12000-0x8.0 |
CS16000 | 16,000 | CS16000-0x1.0 | CS16000-0x2.0 | CS16000-0x3.0 | CS16000-0x4.0 | CS16000-0x5.0 | CS16000-0x6.0 | CS16000-0x8.0 |
CS20000 | 20,000 | CS20000-0x1.0 | CS20000-0x2.0 | CS20000-0x3.0 | CS20000-0x4.0 | CS20000-0x5.0 | CS20000-0x6.0 | CS20000-0x8.0 |
Colour/ Code |
secutex Code Single Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
CS12000 | SF1-CS-180 | 180 | 230 | 37 | 3.0 |
CS16000 | SF1-CS-240 | 240 | 265 | 35 | 3.1 |
CS20000 | SF1-CS-300 | 300 | 330 | 35 | 3.8 |
Colour/ Code |
secutex Code Double Sided | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
CS12000 | SF2-CS-180 | 180 | 230 | 37 | 4.2 |
CS16000 | SF2-CS-240 | 240 | 265 | 35 | 5.6 |
CS20000 | SF2-CS-300 | 300 | 330 | 35 | 6.6 |
Colour/ Code |
secutex Code Clip-On | Interior Width (mm) | Exterior Width (mm) | Exterior Height | Weight Per Run Metre |
CS12000 | SC-CS-180 | 180 | 230 | 37 | 4.1 |
CS16000 | SC-CS-240 | 240 | 265 | 35 | 5.0 |
CS20000 | SC-CS-300 | 300 | 330 | 35 | 6.4 |

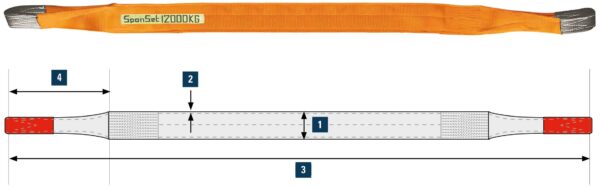

Colour/ Code |
Rated WLL (kg) |
Width (mm) |
Thickness (mm) |
Min Sling Length (mm) |
Min Eye Length (mm) |
Min Pin Diameter (mm) | Min Load Edge Diameter (mm) |
CS12000 | 12,000 | 180 | 18 | 2500 | 800 | 16 | 48 |
CS16000 | 16,000 | 240 | 18 | 3000 | 1000 | 18 | 54 |
CS20000 | 20,000 | 300 | 18 | 3100 | 1200 | 18 | 54 |
