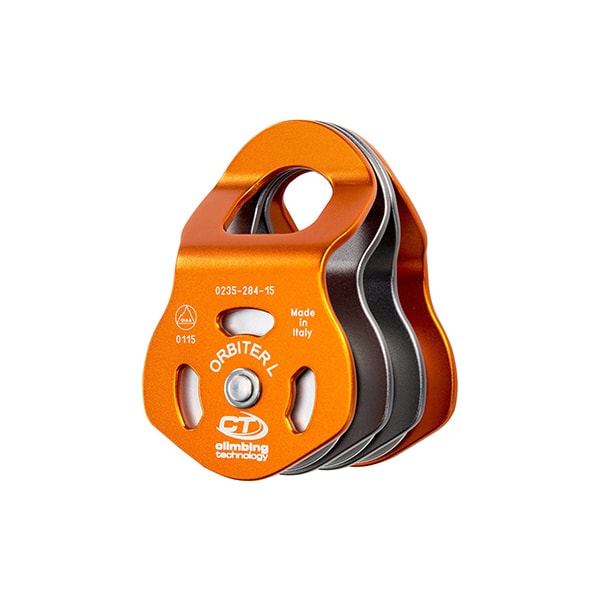

CT Orbiter L Triple Pulley

Features

The Orbiter L Tripe pulley with mobile side plates is very versatile and robust and has provision for two connectors through the uper eyelet. Its triple sheaves are mounted on heavy duty ball bearings. Light alloy side plates extend beyond the pulley wheels to minimise rope wear.

The Orbiter L is ideal for constructing 6:1 mechanical rescue systems where a lighter lifting force is required.















Specifications

ROPE

DIMENSIONS (mm)
L x W x D

WEIGHT

MBS

<13 mm

152 x 70 x 68 mm

445 g

42kN
