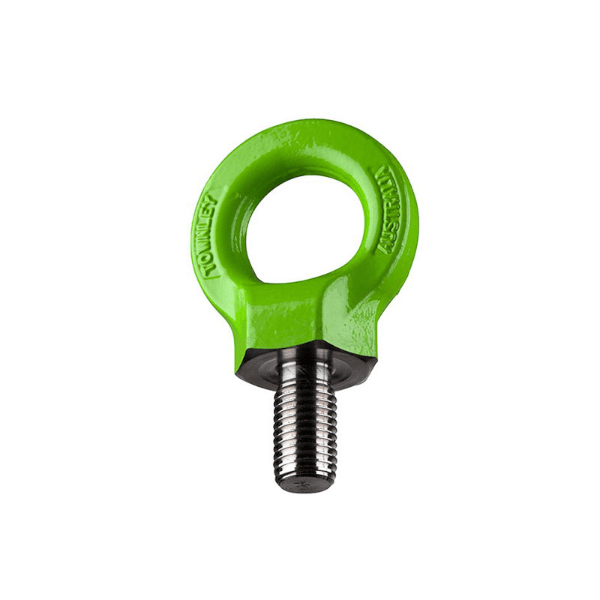

Eye Bolts Grade-8

Features

Forged From High Tensile Alloy Steel
Tempered
Hi-Visibility Powder Coated Finish
Manufactured exclusively from Australian Made Steel
electromagnetic crack testing to AS 1171
Long shanks and special thread forms made to order

Specifications
Applications

Specifications

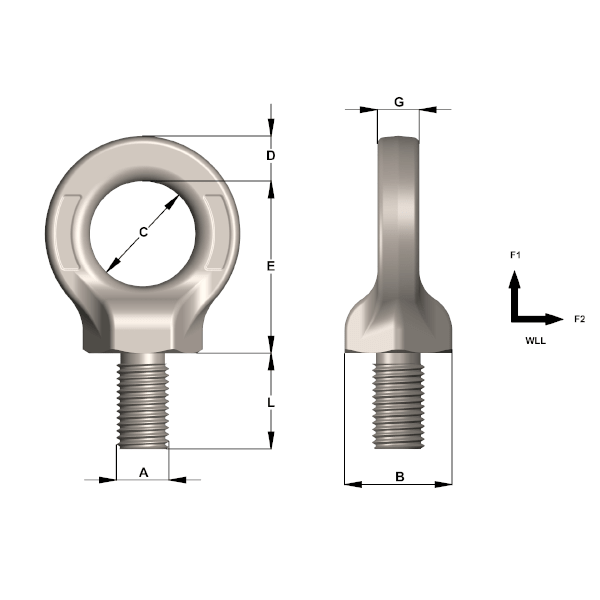

Type	WLL F1 (t)	WLL F2 (t)	Size	B	C	D	E	G	L	Weight (kg)	Product Code
Metric Coarse	0.8	0.2	M08	27	30	12	48	10	21	0.17	HTEB08
Metric Coarse	1	0.25	M10	27	30	12	48	10	21	0.17	HTEB10
Metric Coarse	1.6	0.4	M12	27	30	12	48	10	21	0.17	HTEB12
Metric Coarse	4	1	M16	34	34	15	56	14	28	0.37	HTEB16
Metric Coarse	6	1.6	M20	41	40	17	70	16	35	0.6	HTEB20
Metric Coarse	7	2	M22	50	50	20	70	16	42	1.1	HTEB22
Metric Coarse	8	2.5	M24	50	50	20	85	18	42	1.1	HTEB24
Metric Coarse	8	2.5	M27	50	50	20	85	18	42	1.1	HTEB27
Metric Coarse	12	3	M30	60	60	26	105	26	52	2.6	HTEB30
Metric Coarse	12	3	M33	72	72	34	120	32	58	3.7	HTEB33
Metric Coarse	16	4	M36	72	72	34	120	32	63	3.7	HTEB36

Applications

Grade-8 Eye Bolts offer up to 4 times higher lifting capacity in certain applications. The larger internal eye diameter offers a versatile alternative to standard Grade 4 eyebolts.
