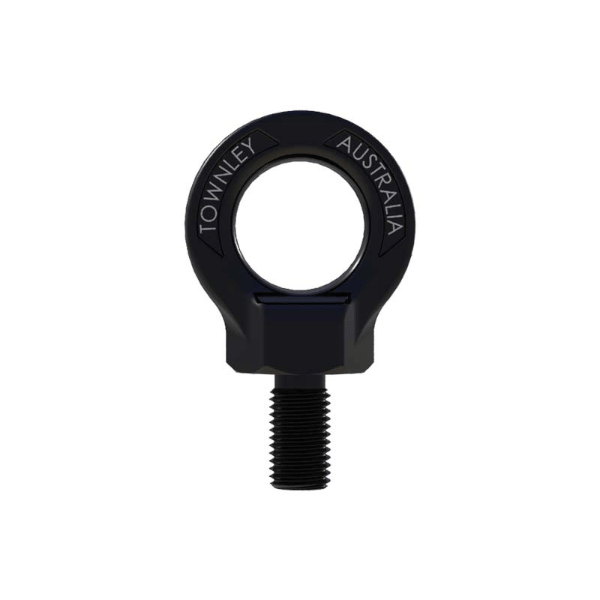

Eye Bolt Entertainment Grade 8
Features Eye Bolt Entertainment Grade 8
- Eye Bolt Entertainment Grade 8 Forged From High Tensile Alloy Steel
- Tempered
- Black Zinc Low Sheen Matt Finish for low visibility applications
- Manufactured exclusively from Australian Made Steel
- electromagnetic crack testing to AS 1171
- Long shanks and special thread forms made to order
Additional information
| WLL | 1, 1.6, 4, 6, 7, 8 |
|---|---|
| Size | M10, M12, M16, M20, M22, M24 |
Specifications
|
Type
|

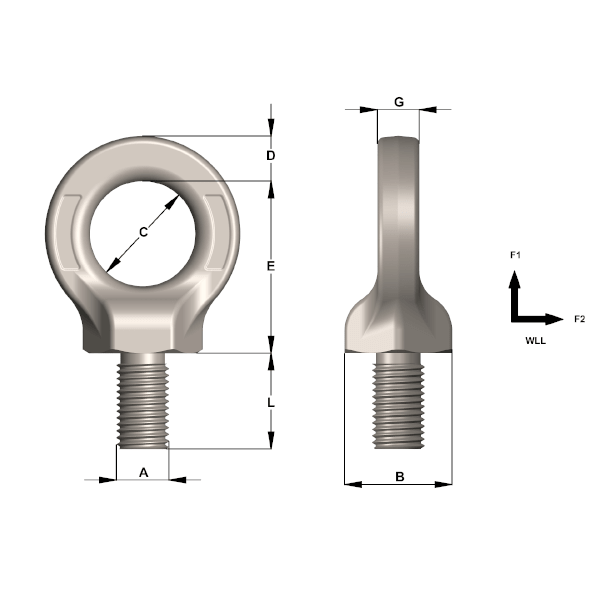

WLL F1 (t) | WLL F2 (t) | Size | B | C | D | E | G | L | Weight (kg) | Product Code |
| Metric Coarse | 1 | 0.25 | M10 | 27 | 30 | 12 | 48 | 10 | 21 | 0.17 | ER-HTEB10 |
| Metric Coarse | 1.6 | 0.4 | M12 | 27 | 30 | 12 | 48 | 10 | 21 | 0.17 | ER-HTEB12 |
| Metric Coarse | 4 | 1 | M16 | 34 | 34 | 15 | 56 | 14 | 28 | 0.37 | ER-HTEB16 |
| Metric Coarse | 6 | 1.6 | M20 | 41 | 40 | 17 | 70 | 16 | 35 | 0.6 | ER-HTEB20 |
| Metric Coarse | 7 | 2 | M22 | 50 | 50 | 20 | 70 | 16 | 42 | 1.1 | ER-HTEB22 |
| Metric Coarse | 8 | 2.5 | M24 | 50 | 50 | 20 | 85 | 18 | 42 | 1.1 | ER-HTEB24 |
Applications
Designed for the entertainment industry
