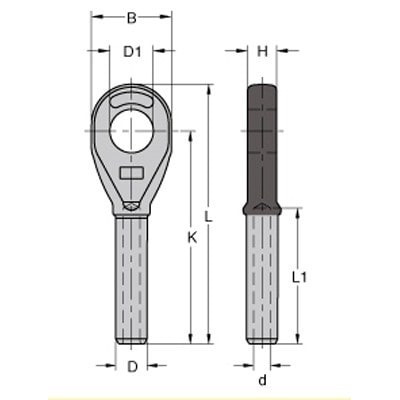

Wire Rope Fitting Forged-Open-Swage-Wire-Rope-Socket Drawing

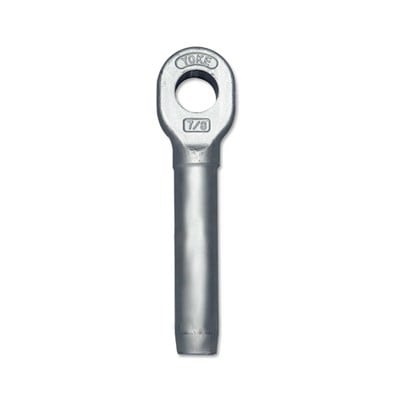

Wire Rope Fitting Forged Open Swage Wire Rope Socket

Features

  • Forged from special, bar quality steel with hardness controlled, spheroidize annealing.
  • When properly applied these fittings have an efficiency rating of 100% based on the catalogue strength of wire rope.
  • Recommended for use with 6 x 19, 6 x 37, IWRC wire rope and galvanised bridge rope.
  • Not recommended for use on fibre core or langs lay rope.










Specifications

Rope Size (mm) L D B D1 d L1 H K Max After Swage
Dim. (mm)		 N.W (kg) Part No.
(Self-Colour)
6-7 110 13 35 19 7 54 13 89 12 0.2 46832*
8 140 20 41 22 9 80 17 114 18 0.3 46833*
9-10 140 20 41 22 11 80 17 114 18 0.3 46834
11-12 176 25 51 27 12 108 22 146 23 0.7 46835*
13 176 25 51 27 14 108 22 146 23 0.6 46836
14-15 221 32 61 32 16 135 29 185 30 1.4 46837*
16 221 32 61 32 17 135 29 185 30 1.3 46838*
18-20 259 39 73 36 21 162 33 217 36 2.2 46839*
22-23 304 43 79 43 24 189 38 258 39 3.1 46840*
24-25 342 50 92 52 27 216 45 293 46 4.8 46841*
28 382 57 102 59 30 243 51 323 52 6.7 46842
32 431 64 114 65 34 270 57 364 58 10.1 46843*
35-36 475 71 127 65 37 297 57 402 65 12.9 46844*
38 511 78 140 71 41 323 64 432 71 16.9 46845*
44-45 598 86 159 90 47.2 378 76 508 78 24.3 46846*
48-51 702 100 184 97 54.1 432 83 584 90 40.5 46847*

Applications

Lifting, wire rope assemblies.
