Wire Rope Fitting Open Metalling Sockets

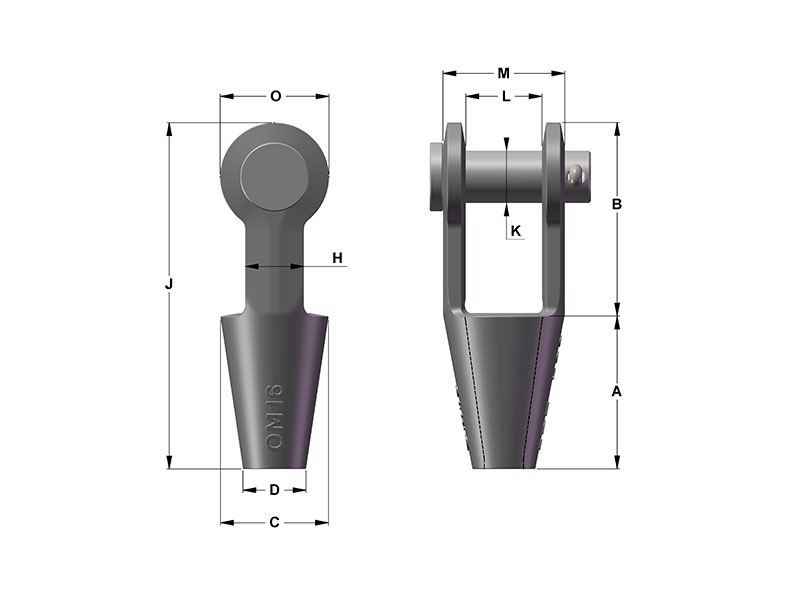

Wire Rope Fitting Open Metalling Sockets Drawing

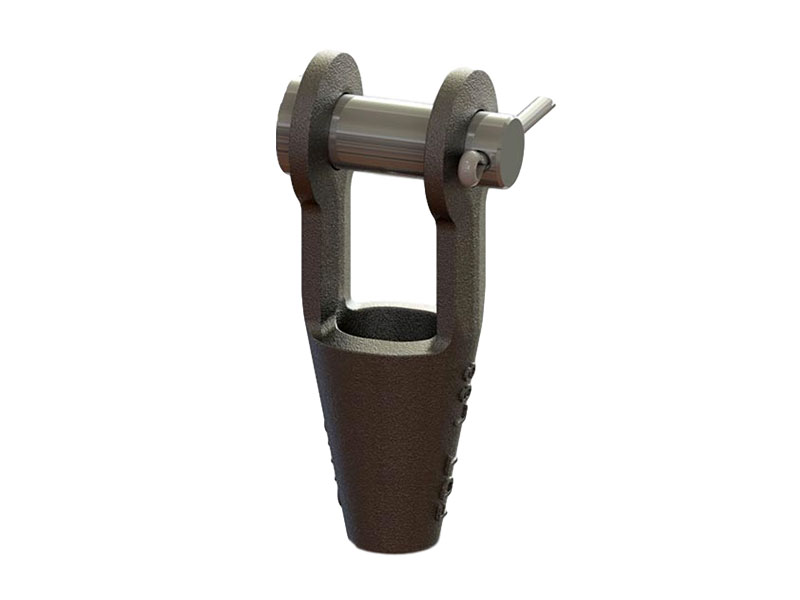

Wire Rope Fitting Open Metalling Sockets

Features

  • Manufactured in Australia
  • Cast Alloy Steel
  • Available for rope sizes 10mm to 70mm
  • 100% Magnetic particle inspected in accordance with AS1171
  • Ultrasonically tested in accordance with AS2574
  • Manufactured in accordance with BS463 to meet the performance requirements of AS1666 Wire Rope Slings
  • Black self colour

Surface finish options include:

  • Black self colour
  • Galvanized
  • Painted










Specifications

Working Load Limit (t) Rope Diameter A B C D H J K L M O Weight (kg) Product Code
1.74 10 51 43 38 30 21 112 16 22 43 38 0.5 FDT-OM10
2.6 13 60 52 44 24 22 135 21 29 48 44 0.8 FDT-OM13
4.2 16 70 64 50 29 27 159 24 35 56 50 1.1 FDT-OM16
7.5 20 76 67 62 33 33 175 29 38 70 64 2 FDT-OM20
10 22 86 76 70 41 40 197 32 43 78 70 2.5 FDT-OM22
13.9 26 105 89 83 49 46 237 38 48 89 86 5 FDT-OM26
14.8 28 114 102 92 57 50 262 41 50 94 92 6.5 FDT-OM28
24.5 32 133 111 108 64 60 297 48 54 111 105 10 FDT-OM32
33.8 36 to 42 152 114 127 70 67 330 57 65 135 127 14 FDT-OM38
53.5 44 to 54 195 170 190 100 100 450 90 90 180 175 45 FDT-OM52
99.6 58 to 64 240 270 225 120 115 620 105 130 240 230 85 FDT-OM64
115 70 250 295 230 130 125 670 120 145 260 255 110 FDT-OM70

Applications

Commonly known as resin, spelter or poured sockets, FDT open metalling sockets are manufactured in Australia from high quality alloy cast steels.
