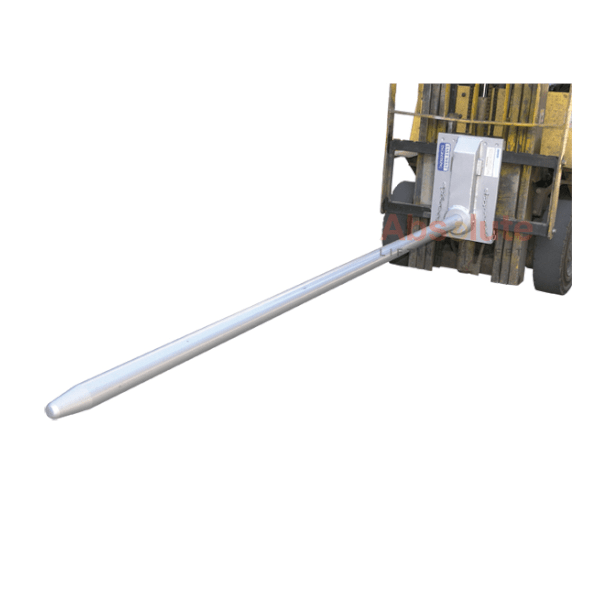

RPC Carriage Mounted Roll Prong
FEATURES:
• Suitable for carpet, vinyl, fabric, cable, reel and coil products
• Available for Class II, III and IV forklift carriages, along with pin mounted
• ‘QR’ models feature Quick Release lower carriage hooks and a spring loaded locating pin for safe & easy installation
• Manufactured from high tensile steel
• Can be custom made to any length
• Enamel paint finish
Specifications
Model |
Mounting Class |
WLL @ Load Centre (kg @ mm) |
Prong Diameter (mm) |
Prong Length (mm) |
Lost Load (mm) |
Unit Weight (kg) |
RPC-QR2-40-1200 | Class 2 | 200 @ 600 | 40 | 1200 | 100 | 63 |
RPC-QR2-50-1800 | Class 2 | 250 @ 900 | 50 | 1800 | 100 | 79 |
RPC-QR2-60-2800 | Class 2 | 340 @ 1400 | 60 | 2800 | 100 | 113 |
RPC-QR2-70-2800 | Class 2 | 510 @ 1400 | 70 | 2800 | 100 | 135 |
RPC-QR2-80-2800 | Class 2 | 850 @ 1400 | 80 | 2800 | 100 | 166 |
RPC-QR3-70-2800 | Class 3 | 510 @ 1400 | 70 | 2800 | 200 | 190 |
RPC-QR3-80-2800 | Class 3 | 850 @ 1400 | 80 | 2800 | 200 | 220 |
RPC-QR3-100-2800 | Class 3 | 1700 @ 1400 | 100 | 2800 | 200 | 282 |
Applications
The RPC Carriage Mounted Roll Prong is designed for the safe handling of rolled products with a central core.
