Container Hook
Container Hook
A special purpose hook suitable for lifting cargo containers & shipping containers.

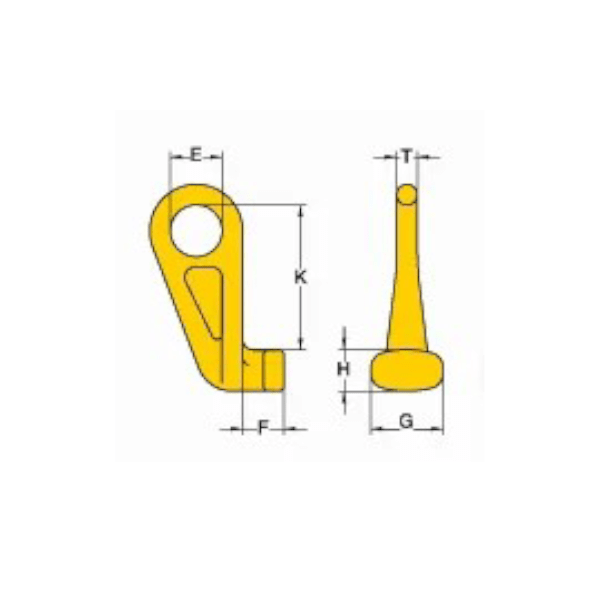

Specifications
| Type | WLL (tonnes) |
K (mm) |
E (mm) |
F (mm) |
T (mm) |
G (mm) |
H (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
| Straight | 12.5 | 192 | 70 | 45 | 25 | 75 | 48 | 3.9 | 42172Y | 8-067-STR | KA – S |
| Left 45 | 12.5 | 192 | 70 | 45 | 25 | 75 | 48 | 3.9 | 42173Y | 8-067-45LT | KA – L |
| Right 45 | 12.5 | 192 | 70 | 45 | 25 | 75 | 48 | 3.9 | 42174Y | 8-067-45RH | KA – R |
