Ultra Low Hydraulic Monorail Hoist

Ultra Low Hydraulic Monorail Hoist Features.

The JDN Ultra Low Hydraulic Monorail Hoist provides the ideal solution for lifting and transporting loads in reduced spaces.

Product Enquiry

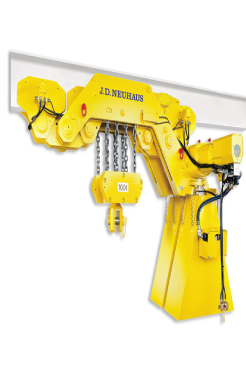

Ultra Low Hydraulic Monorail Hoist.

The JDN Ultra Low Hydraulic Monorail Hoist provides the ideal solution for lifting and transporting loads in reduced spaces.  Furthermore, as an example,  the model with a 6 tonne load capacity features a headroom of only 230mm.  In addition, carrying capacity of these models vary from 4 tonne up to 100 tonne, with an air pressure of 6 bar.

  • Manufactured in Germany, under strict quality control with demanding tolerances.
  • All JDN models are manufactured to comply with AS1418.2.
  • Ideal for applications in explosion risk areas.
  • Insensitive to dust, humidity and temperatures ranging from -20 °C up to + 70 °C.
  • Extremely low headroom.
  • Low air consumption.
  • Available with increased spark protection.

Specifications

MODEL UH 4 UH 6 UH 8 UH 12 UH 16
Stock Code JDN806 JDN808 JDN999
Rated Capacity (tonne) 4 6 8 12 16
No. of chain strands 2 2 4 4 4
Air Pressure (bar) 6 6 6 6 6
Motor Output (kW) 2.5 2.5 2.5 2.5 2.5
Lifting speed at full load (m/min) 3.0 2.0 1.4 0.9 0.65
Lowering speed at full load (m/min) 7.5 5.2 3.6 2.5 1.5
Air consumption at full load (m³/min) 4.0 4.0 4.0 4.0 4.0
Weight with standard lift and control length (kg) 460 470 540 550 560
Chain Dimension (mm) 13 x 36 13 x 36 13 x 36 13 x 36 13 x 36
Weight of 1m chain (kg) 3.8 3.8 3.8 3.8 3.8
Standard Lift (m) 3 3 3 3 3
Length of control at standard load (m) 2 2 2 2 2
Noise level at full load lifting (dB (A)) 78 78 78 78 78
Noise level at full load lowering (dB (A)) 80 80 80 80 80

JDN-Ultra-Low-Monorail-Hoists-Dimensions



MODEL UH 4 UH 6 UH 8 UH 12 UH 16
A 195 305 195 305 305
B 200 200 200 200 200
C 284 284 284 284 284
D 165 165 165 165 165
E 236 236 236 236 236
F 330 330 283 283 283
G 197.5 197.5 197.5 197.5 197.5
H min. 150 ≤ b ≤ 310 230 230
H min. 150 ≤ b ≤ 230 295 295 334
H min. 230 ≤ b ≤ 310 276 276 315
J 400 400 400 400 400
K 535 535 535 535 535
L 1000 1000 1000 1000 1000
M 40 40 44 44 53
N 51 51 66 66 82
