PRO-2G Davit

Features

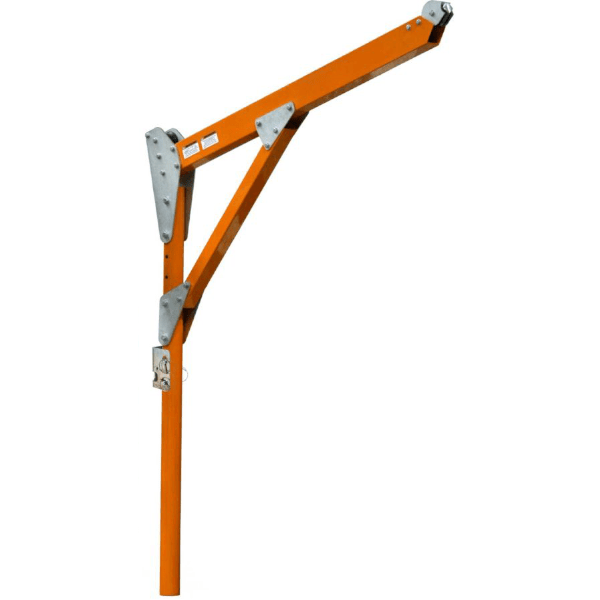

The BTS PRO-2G Davit Analogue Series Davit is a portable davit arm

that can be used with a Self Retracting Lifeline (SRL) to provide fall protection. Can also be used as an abseil (rope access) diversion anchor. Height 2.10m and an offset reach of 1.20m.

  • Rotates full 360 degrees.
  • Man & Material Rated to 136Kg
  • Offset reach 1.20m.
  • Custom off set and heights available.
  • Compatible with permanent davit bases.
  • Stand-by person anchor point via winch interface bracket
  • Manufactured & Tested to AS/NZS5532-2013













Specifications

Ultimate Strength Rating: 15 kN
Capacity: Maximum number of users: 1 Max. 1 worker weighing not more than 136kg each.
Allowable MAF Rating for SRL’s: 4kN
PRO-2 ANALOGUE SERIES DAVITS
Part No. Model Description Reach (m) Height (m) Winch/Anchor
50015 PRO-2G Analogue Series Davit c/w winch interface bracket assembly 1.20 2.10 Rear Mount



PRO-2G DAVIT ACCESSORIES
Part No. Model Description
60174 Winch Interface Bracket c/w Pins & lanyard for Anallogue Davit
60202UG Quick Release Universal Male Single Interface Bracket
60202UI IKAR Rescue winch Bracket c/w Female Single Interface Brackets
GO TO WINCH PAGE BTECH Man / Materials Rated Winch 18, 30, 45, 60, 76 & 90m wire rope
HRA-12TA, HRA-18TA
HRA-24TA
IKAR Recovery Winch 12, 18 or 24 metre
60202UF Quick Release Female Single Universal Interface Bracket with Pin
40003B BTECH Storage/Carry Bag
