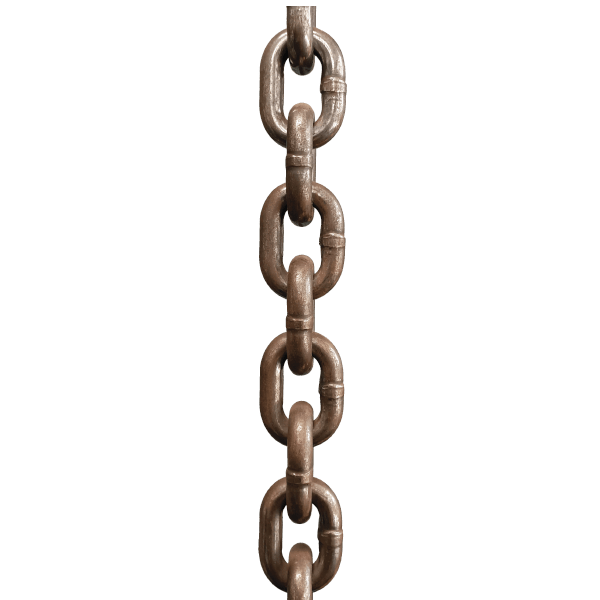

Grade80 Chain
Grade80 Chain
- Grade80 Chain complies to Australian standard: AS 2321
- Chain Size 6 -32 mm
- Manufactured grade 80 chain under the “Herc-Alloy” name.
- Not only to Australian standards but also to our own demanding quality requirements.
- Still proudly made in Australia, the Herc-Alloy chain was the first in the grade supporting Australian industry requirements and remains the choice of those who demand 50 years of experience in every lift.
- Herc-Alloy 800™ Chain is manufactured to the most exacting quality control standards and conforms to the mechanical properties of the Grade 80 (T) chain.
- Chain sizes 6mm to 22mm manufactured in Australia.
- Herc-Alloy Chain may be supplied with the following identification markings: PWB-HA8, HA8.
Specifications

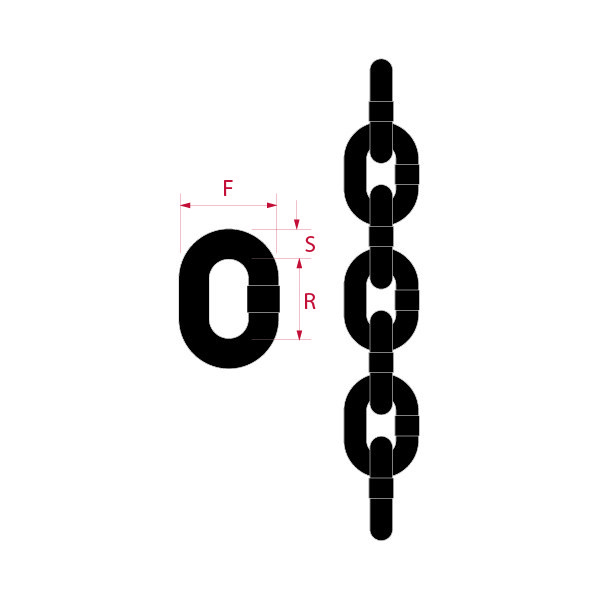

Chain Size (mm) |
WLL (tonnes) |
S (mm) |
R (mm) |
F (mm) |
Part No. | Kg/100m |
6.0 | 1.1 | 6.3 | 20.8 | 22.3 | 40135 | 85.2 |
7.1 | 1.6 | 7.1 | 23.8 | 25.9 | 40136 | 114.0 |
8.0 | 2.0 | 8.0 | 23.8 | 27.0 | 40959 | 140.0 |
10.0 | 3.2 | 9.7 | 29.8 | 33.8 | 40137 | 208.0 |
13.0 | 5.3 | 12.7 | 38.0 | 43.0 | 40138 | 349.0 |
16.0 | 8.0 | 16.0 | 47.8 | 54.0 | 40139 | 564.0 |
20.0 | 12.5 | 20.0 | 59.2 | 67.5 | 40140 | 878.0 |
22.0 | 15.0 | 22.0 | 65.0 | 74.2 | 40141 | 1066.0 |
26.0 | 21.2 | 26.0 | 78.0 | 96.2 | 41256T | 1520.0 |
32.0 | 31.5 | 32.0 | 96.0 | 112.0 | 40839 | 2410.0 |
Applications
- Used in a wide range of industrial lifting applications
- Ideal for construction, infrastructure, building
