Grade S Screw Pin D Shackle
Grade S Screw Pin D Shackle
- Conforms to AS2741 manufactured from Grade S material in dee configuration with screw pin hot dipped galvanised.
- Marked with working load limit in tonnes, quality grade, batch numbered, nominal size in millimeter and supplier identification.
- Proof tested to 2 x working load limit, with a minimum break force of 6 x working load limit.
- Suitable for lifting applications.
Grade S Screw Pin D Shackle
Grade S screw pin D dee shackles are most commonly used for lifting applications, providing connections to chain, wire rope and other rated fittings within the marine, agricultural, mining and engineering industries.

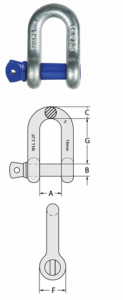

Specifications
| SIZE (mm) | CODE | WLL (T) | Wt. (kg) | DIMENSIONS (MM) | ||||
|---|---|---|---|---|---|---|---|---|
| A | B | C | F | G | ||||
| 6 | DS0.5T | 0.5 | 0.05 | 12 | 8 | 6 | 17 | 22 |
| 8 | DS0.75T | 0.75 | 0.09 | 13 | 10 | 8 | 21 | 26 |
| 10 | DS1T | 1 | 0.14 | 17 | 11 | 10 | 25 | 32 |
| 11 | DS1.5T | 1.5 | 0.17 | 18 | 13 | 11 | 27 | 37 |
| 13 | DS2T | 2 | 0.29 | 21 | 16 | 13 | 33 | 41 |
| 16 | DS3.2T | 3.2 | 0.63 | 27 | 19 | 16 | 40 | 51 |
| 19 | DS4.7T | 4.7 | 1.02 | 32 | 22 | 19 | 48 | 60 |
| 22 | DS6.5T | 6.5 | 1.53 | 37 | 25 | 22 | 54 | 71 |
| 25 | DS8.5T | 8.5 | 2.41 | 43 | 29 | 25 | 60 | 81 |
| 29 | DS9.5T | 9.5 | 3.09 | 46 | 32 | 29 | 67 | 90 |
| 32 | DS12T | 12 | 4.31 | 52 | 35 | 32 | 76 | 100 |
| 35 | DS13.5T | 13.5 | 6.01 | 57 | 38 | 35 | 84 | 113 |
| 38 | DS17T | 17 | 8.03 | 60 | 44 | 38 | 92 | 124 |
| 44 | DS25T | 25 | 11.48 | 73 | 51 | 44 | 110 | 146 |
| 51 | DS35T | 35 | 20.42 | 83 | 57 | 51 | 127 | 171 |
| 57 | DS42.5T | 42.5 | 26.06 | 95 | 63 | 57 | 143 | 181 |
| 63 | DS55T | 55 | 38.8 | 105 | 70 | 63 | 152 | 203 |
