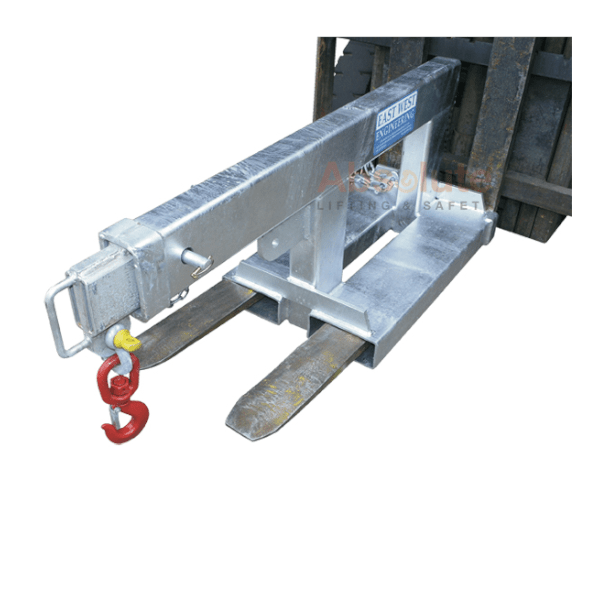

FJCS25 Telescopic Jib (Short) 2.5T
FEATURES:
• 1.96m reach when fully extended
• 1.3m overall length when retracted allow use in confined spaces
• Supplied with safety swivel hook and shackle
• Slip-on attachment and safety chain allows quick connection to a forklift
• Zinc finish
Specifications
| Working Load Limit (WLL) | 2500kg |
| Load Centre | 790mm |
| Unit Weight | 100kg |
| Fork Pocket Size | 185 x 65mm |
| Fork Pocket Centres | 275mm |
|
Working Load Limit (WLL) per Position |
||||
|
Position |
1 |
2 |
3 |
4 |
|
Extension |
790 |
1200 |
1580 |
1960 |
|
WLL (kg) |
2500 |
1200 |
900 |
750 |
Applications
The FJCS25 Telescopic Jib is an affordable 2.5 tonne general purpose short reach forklift jib designed to suit lifting and maintenance requirements in confined spaces.
