ERGO 1800 Harness

ERGO 1800 Harness offer simplicity in donning and practicality when working. These reliable safety harnesses are certified to AS/NZS 1891.1
Suitable for pole work, tower work, rope access, rescue, fall arrest, roof work, ladder safety systems, maintenance, construction etc

Get A quote

Call Us: 07 3205 7000

Description
Specifications
Features & Benefits
Spanset Harness Size Guide
Spanset Max User Weights

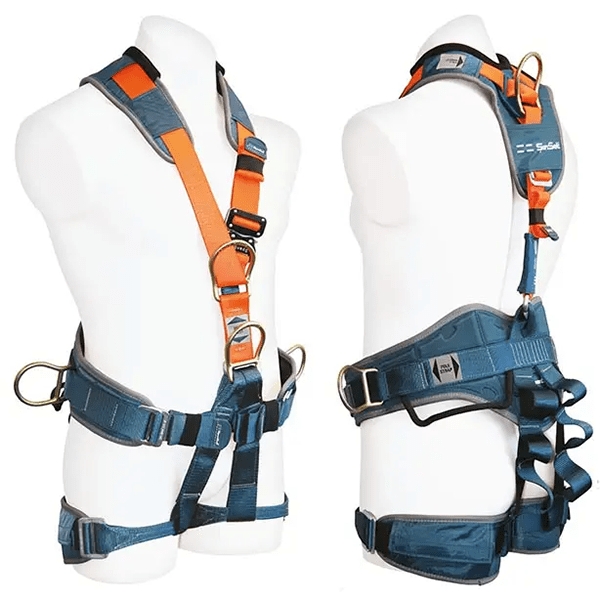

ERGO 1800 Harness

ERGO Harnesses are a full body fall arrest harness in our most popular range and have now been further improved with the latest technology and manufacturing techniques available. Now 20% lighter, yet just as robust, these harnesses offer simplicity in donning and practicality when working. Comfortable enough to wear all day, these reliable safety harnesses are certified to AS/NZS 1891.1 and supported by a NATA accredited compliance and batch testing regime.

Specifications

1800 ERGO Harness

– Rear fall arrest D ring
– Front fall arrest and abseil wide mouth D rings
– Padded waist band and side D rings
– Reinforced gear loops
– Elasticised rear leg droppers
– Fully adjustable leg and shoulder straps
– Quick release shoulder buckle opening
– Hi Vis webbing

Suitable for pole work, tower work, rope access, rescue, fall arrest, roof work, ladder safety systems, maintenance, construction etc

Code: 1800 ERGO

Features & Benefits

Ergo Full Body Harness

Features and Benefits

1. Optimised positioning of front connection
Lighter than shoulder Ds but small enough for efficient and safe connection of snap hooks for spreader bar insertion to confined spaces.

2. Documents pouch
Keeps compliance labels and inspection record clean and intact.

3. Manufactured, designed, tested and fully certified in Australia to AS/NZS1891.1
Local SAI Global accreditation for trust and
peace of mind.

4. Adjustable chest D ring to centralise
Ability to centralise chest D ring ensures even and comfortable front loading.

5. Optimised stitch patterns
Shaped and designed for optimum strength
and security.

6. Maximised adjustment of chest strap
Additional adjustment options for small and
large chests alike.

7. Rubber end grips
Comfortable tabs for easy adjustment.

8. Front fall arrest D ring
Precise connection for front fall arrest applications such as climbing and ladder systems. Lower positioning keeps connectors out of your face in front attachment applications.

9. 2 and 3 bar buckles
Proven as the most reliable connection with no moving parts.

10. Elastic webbing keepers
Easy storage and housekeeping of excess adjustment webbing.

11. Large rear fall arrest D ring
Easy to make a positive connection.

12. Ergonomic pull up shoulder strap adjustment
Allows one handed and additional adjustment.

13. Small D ring slider pad
Stops D ring digging into the back while minimising plastic to body contact.

14. Breathable mesh panel
Mesh panel airflow counteracts heat build-up, while giving the harness structure and form to minimise tangling and ensure correct donning.

15. Fitted with suspension trauma relief straps
Allows a suspended conscious operative to minimise the effects of suspension trauma.

16. Optimised buttock strap position and lock down stitch
Minimises the potential for harness peel out in a reversed crouched position.

17. Supplied in free storage bag
Keeps harness free of dirt and moisture.

O Adjustment points
Ensures correct fitting of chest, shoulder and leg straps conforming to a maximum amount of body shapes.

20% lighter than previous models
Reduces weight and fatigue leading to greater worker acceptance and compliance.

Spanset Harness Size Guide

Spanset Size Guide

SpanSet’s full range of Harnesses will accommodate multiple sizes. When compared with other manufactures our Harness sizing is equivelent to a Medium, Large or Extra Large. Please see below for our minimum & maximum measurements.

Spanset Harness Size Guide

* Above is just a guide to getting the right harness for your body size. Correct fitting of the Harness must be achived to ensure it is safe for use – Refer: To our Fitting Instructions that are attached to the Harness to achieve optimal fit.
Note: If your size falls outside of these measurements there will be an additional charge for a custom made harness. Please contact our Customer Service Team for these charges.

Harness Sizes
