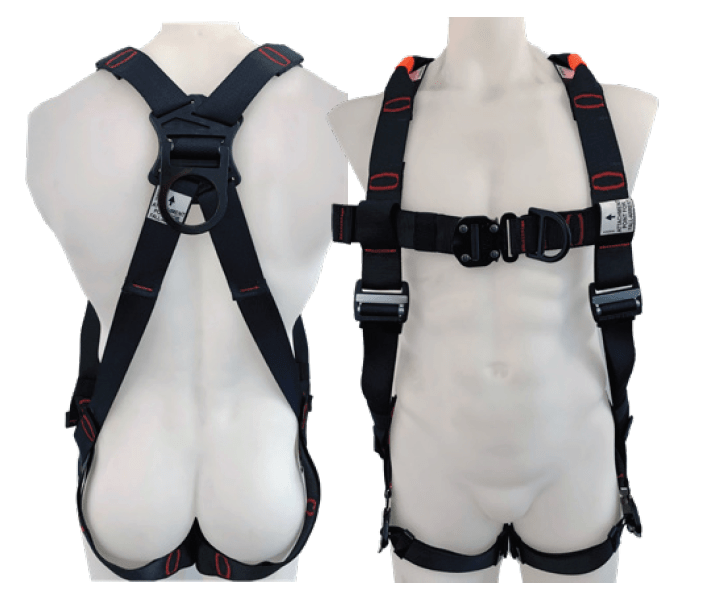

3M™ Protecta® P200 Riggers Full-Body Harness

3M™ Protecta® P200 Riggers Full-Body Harness provide reliable protection, comfort and convenience; now with upgraded features and a sleek, modern look.

Description
Specifications

3M™ Protecta® P200 Riggers Full-Body Harness

Features
• Integrated Suspension Relief Straps
Provide an adjustable, continuous loop for post fall,
offering suspension relief.
• D-Ring Placement
Conveniently placed front fall arrest D-ring helps you stay
balanced and centred.
• Lanyard Keepers
Provides easy parking of snap hooks or karabiners.
• Impact Indicators
Rip-stitch indicators allow you to inspect the harness at a
glance, for prior damaging impact loads.
• Modern Black Components
Zinc plated steel with electro deposit paint finish
• Covered Labels
A Velcro™ cover protects harness labels.
• Confined Space Loops
Positions user in vertical position when lowering/raising
from Confined spaces (when used with spreader bar).
• Universal Size
One model size to accommodate a broad range of users
(refer sizing guide)

Standards
Certifed to AS/NZS 1891.1:2020

Special Instructions/Conditions of Use
Reading user instruction manual prior to use is essential.
Six monthly inspection & re-certification is required as per
AS/NZS 1891.4
Central front fall arrest point
Quick

Specifications

3m Part Number
3M Code Model # Description
XF003916616 1130116 Protecta P200 Riggers Harness Universal Size

Protecta P200 Riggers Harness
Webbing Colour	Black
Webbing Material	Polyester
Webbing width	45mm
Thread/Stitching material	Polyester
Thread/Stitching Colour	Red
Resistance	UV degradation tested as per AS/NZS 1891.1:2020 requirements
Hardware	• Rear D – Fall Arrest rated, Zinc plated steel, minimum break strength 22.2kN, internal diameter width 55.5mm • Front D-ring- Fall Arrest rated, Zinc plated steel, minimum break strength 22.2kN, internal diameter width 44.5mm • Quick Connect Buckles- Chest & legs, solid riveted construction, Zinc plated steel
Web Keeper	Nylon Elastic and Plastic
Capacity	One user. The minimum and maximum weight of the user that includes clothing, tools, etc is determined by the connecting subsystem being used, e.g. 3M™ DBI-SALA®, 3M™ Protecta® Lanyard or Self- Retracting Lifeline.
Weight (approx.)	1.83kg
Temperature (Working Environment)	-20°C to 50°C (guide only)
If a dorsal extension is part of your harness the maximum lanyard assembly permitted is 1.7m or less.
