Doublefit

Features

Doublefit is the latest  generation of hoist rope especially developed for all kind of ambitious lifting applications. The swaging procedure generates an extrem circular rope surface pro- viding an extraordinary multilayer spooling behaviour. Furthermore this technique ensures the rope to reach the highest breaking loads of all rotation resistant ropes from CASAR by using wires in standard tensile grades.











Doublefit

  • Temperature range of use: –50°C to 75°C
  • Available in right hand and left hand
  • Available in ordinary lay and Lang‘s lay
  • Wires in standard tensile grades

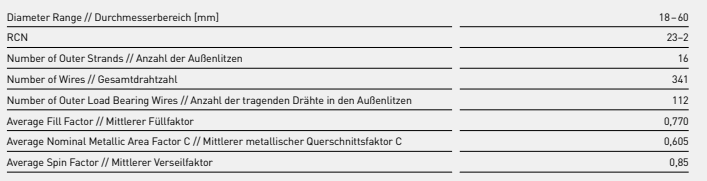

doublefit overview

Specifications

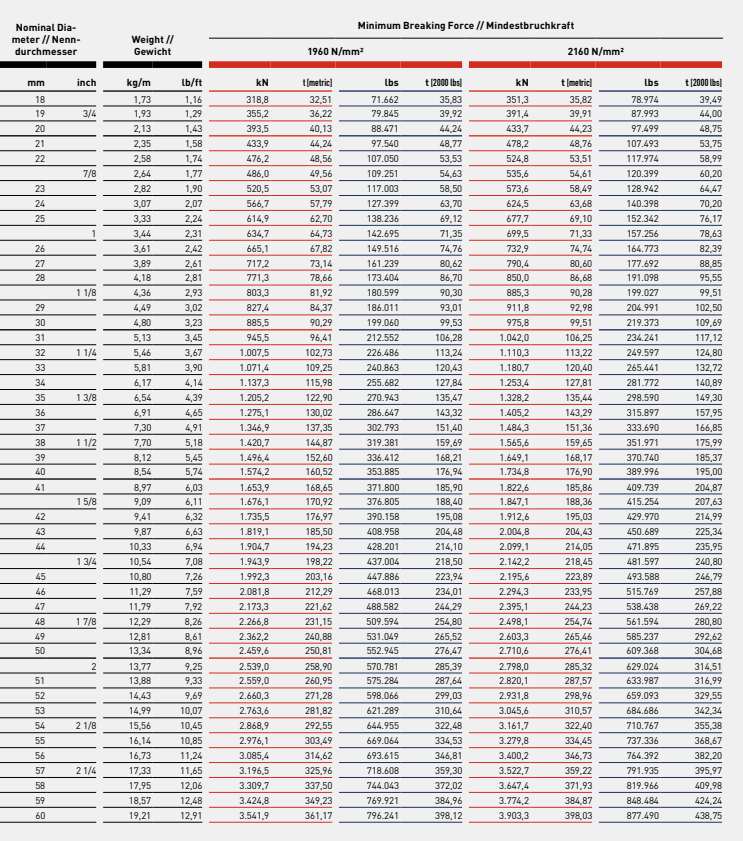

doublefit specs
