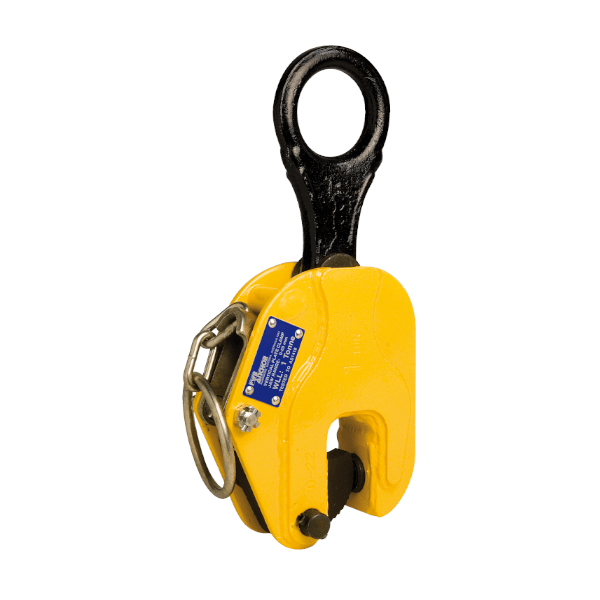

Vertical Plate Clamp – Model VPC

Features

  • Rigid steel construction.
  • Heavy duty industrial plate clamp.
  • Special alloy steel cam and jaws are drop forged and heat treated for long lasting life and safe gripping power suitable for plates of 400 vickers hardness (HRC 41) max.
  • Equipped with spring loaded safety lock.
  • The safety factor is 5 to 1.
  • Tested and certified to 200% of rated capacity.
  • Manufactured in China










Specifications

Part No. Model WLL
(tonnes)
Hardness
Range
Effective
Thickness
(mm)
Weight
(kg)
49311 1t VPC 1.0 Hv 85-400 3-20 3.9
49667 2t VPC 2.0 Hv 85-400 3-30 6.0
49668 3t VPC 3.0 Hv 85-400 3-35 9.8

Applications

  • Lifting, transporting, turning, rotating, welding, assembling, erecting, loading, pressing and bending.
  • Loading materials: steel plates, shaped-steel, flat steel, steel joists, iron-frames, iron sheet-piles, steel structures, steel frames, crane girders, crane beams, pipes & etc.
