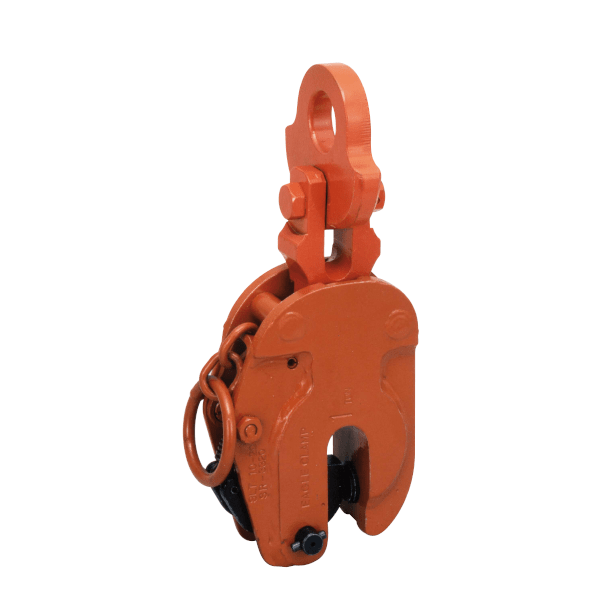

Vertical Plate Clamp – Model SLT

Features

  • Large universal shackle.
  • Reliable latch type lock device (spring type clamping mechanism).
  • Powerful automatic clamping mechanism with force more than twice the weight of the load.
  • Clamping force is proportional to the weight of the load, yet leaves the load free from unnecessary scars.
  • Induction-hardened special steel alloy cam.
  • Main body made of high-tensile steel with welded construction resistant to cracks.
  • Manufactured in Japan.
Product Enquiry

Specifications

Part No. Model WLL  Jaw opening
(mm)
Effective thickness
(mm)
Weight
(kg)
45549 SLT-1 1 tonne 0-20  3-20 7.4

Applications

  • Lifting
  • Transporting
  • Turning
  • Rotating
  • Welding
  • Assembling
  • Erecting
  • Loading
  • Pressing
  • Bending
