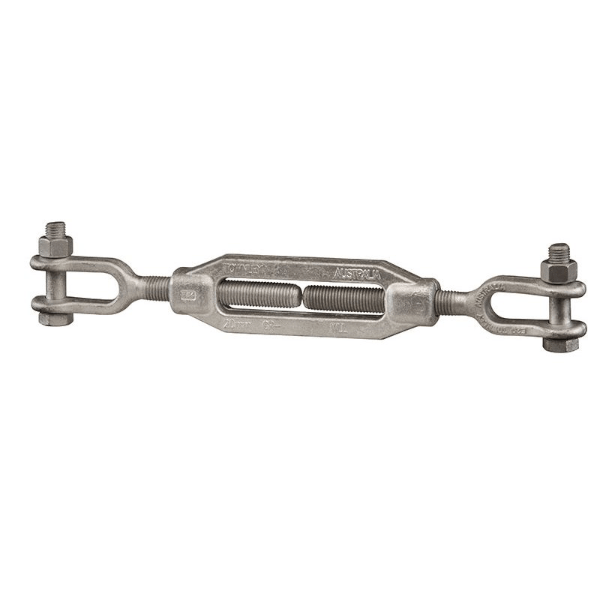

Turnbuckle Clevis & Clevis Turnbuckles
Features
- AS2319 – 2001
- 6:1 Safety Factor
- Grades L, P & S
- Tested and Certified
- Galvanized
- Manufactured using only heat certified Australian Steel (AS1442/AS1444)
Additional information
| Type | Grade L, Grade P, Grade S |
|---|---|
| WLL | 0.3, 0.5, 0.75, 1.25, 2.5, 5, 6, 0.6, 1, 1.6, 4, 8, 0.8, 1.2, 2, 3.2, 10 |
| Nominal Size | M10, M12, M16, M20, M24, M33, 1.25, 1.5 |
Specifications

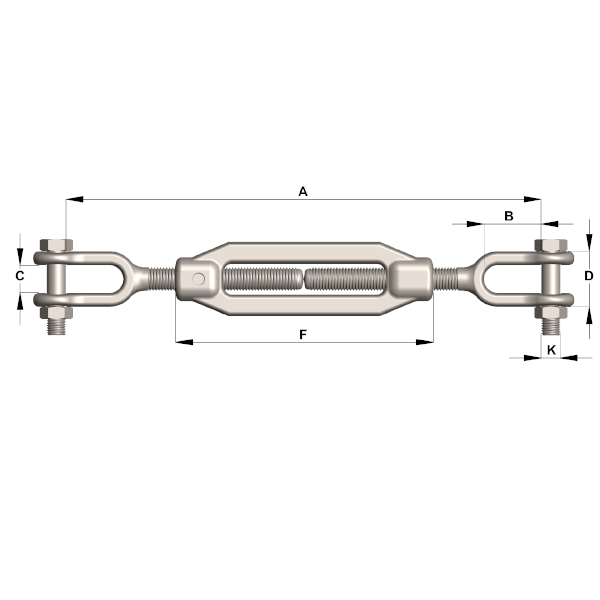

| Type | Working Load Limit (t) | Nominal Size | A Closed | A Open | B | C | D | F | K | Weight (kg) | Product Code |
| Grade L | 0.3 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCCL10 |
| Grade L | 0.5 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCCL12 |
| Grade L | 0.75 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCCL16 |
| Grade L | 1.25 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCCL20 |
| Grade L | 2.5 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCCL24 |
| Grade L | 5 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCCL33 |
| Grade L | 5 | 1.25 | 520 | 670 | 70 | 38 | N/A | 255 | 25 | 7.94 | TBCCL1250 |
| Grade L | 6 | 1.5 | 550 | 740 | 70 | 48 | N/A | 275 | 32 | 13.47 | TBCCL1500 |
| Grade P | 0.6 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCC10P |
| Grade P | 1 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCC12P |
| Grade P | 1.6 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCC16P |
| Grade P | 2.5 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCC20P |
| Grade P | 4 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCC24P |
| Grade P | 8 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCC33P |
| Grade S | 0.8 | M10 | 240 | 350 | 30 | 14 | 30 | 150 | 10 | 0.5 | TBCC10S |
| Grade S | 1.2 | M12 | 335 | 470 | 36 | 15 | 35 | 190.5 | 10 | 0.84 | TBCC12S |
| Grade S | 2 | M16 | 355 | 490 | 45 | 20 | 40 | 204 | 12 | 1.6 | TBCC16S |
| Grade S | 3.2 | M20 | 440 | 520 | 46 | 22 | 46 | 216.5 | 16 | 2.8 | TBCC20S |
| Grade S | 5 | M24 | 450 | 585 | 59 | 30 | 58 | 232 | 20 | 4.57 | TBCC24S |
| Grade S | 10 | M33 | 630 | 780 | 78 | 38 | 76 | 252 | 27 | 8 | TBCC33S |
