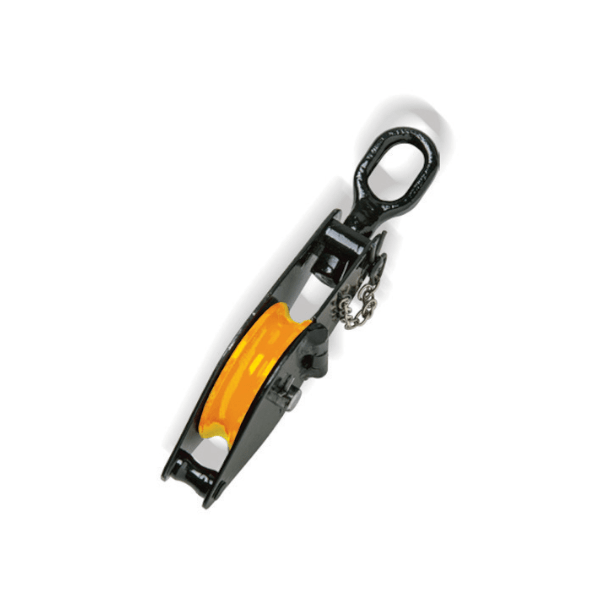

Snatch Block Wire Rope
Features
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single and double blocks.
- Bronze bushes and safety latches are also standard across the range.
Specifications
|
Sheave dia (mm) |
63 |
75 |
100 |
125 |
150 |
200 |
|
Capacity |
250kg |
250kg |
500kg |
1t |
1t |
2t |
|
Manilla Rope dia |
10 |
12 |
16 |
20 |
24 |
32 |
|
Hook Suspended – |
45622 |
45639 |
45672 |
45706 |
45723 |
45757 |
|
Eye Suspended – |
45614 |
45631 |
45664 |
45698 |
45715 |
45749 |
|
Wire Rope dia. (mm) |
5 |
6 |
8 |
10 |
12 |
16 |
|
Hook Suspended – |
45623 |
45640 |
45673 |
45707 |
45724 |
45758 |
|
Eye Suspended – |
45615 |
45632 |
45665 |
45699 |
45716 |
45750 |
Applications
Block and tackle, general pulling
