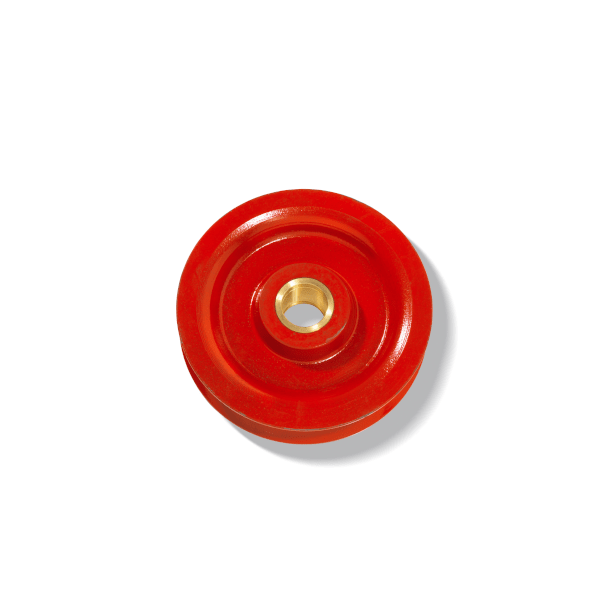

Sheaves Manila Rope

Features

Fully interchangeable sheaves

Product Enquiry

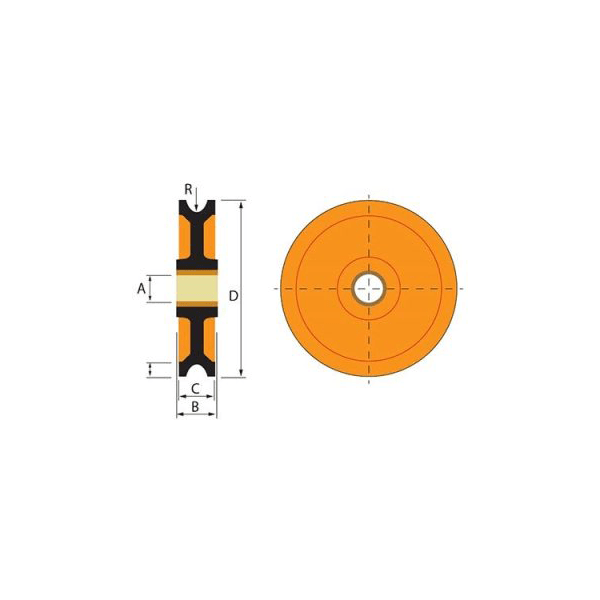

Specifications

Sheave Dia.
D (mm)
Part No. A
(mm)
B
(mm)
C
(mm)
E
(mm)
Rope dia.
R (mm)
63 45588 12.5 20.5 19.5 3.2 10
75 45590 12.5 20.5 19.5 4.8 12
100 45594 19 24.5 23 6.4 16
125 45598 22 29.5 27 7.1 20
150 45600 25 32 30 8 24
200 45604 35 46 44 11 32
