Load Rollers

Features

  • Available in capacities varying from 2 to 24 tonne.
  • Nylon wheels with sealed bearings for increased durability.
  • Non-slip rubber grip surfaces to prevent load movement.
  • High visibility colours for safety purposes.
Product Enquiry

Specifications

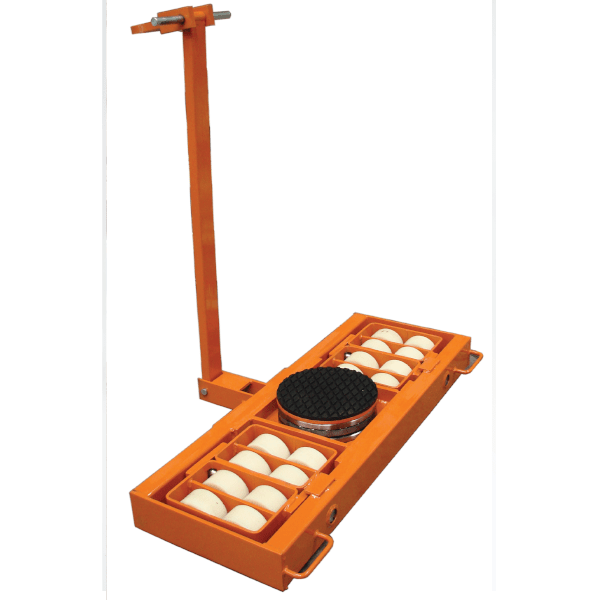

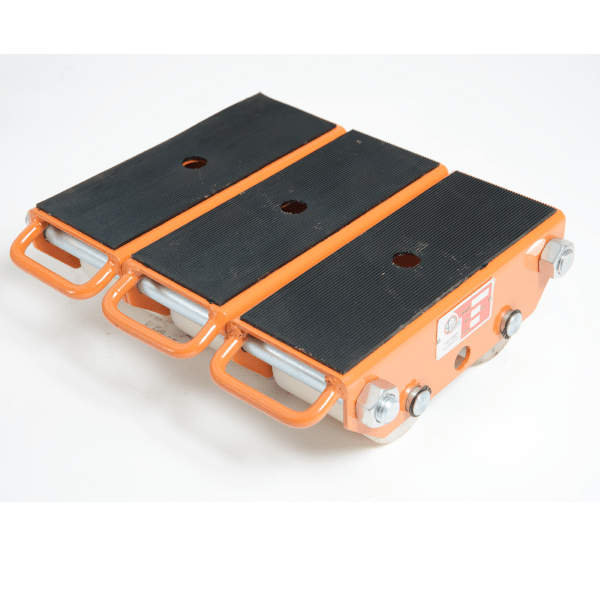

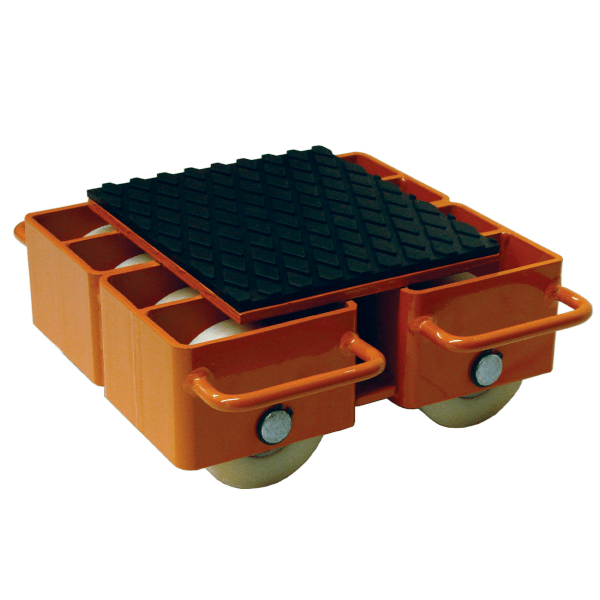

MODEL PLR020 PLR040 PLR045 PLR060 PLR065 PLR120 PLR245
Stock Code PLR020 PLR040 PLR045 PLR060 PLR065 PLR120 PLR245
Rated Capacity per Unit (tonne) 2 4 4 6 6 12 24
Type Fixed Fixed Swivel Fixed Swivel Fixed Swivel
Plate Size (W x L in mm) 95 x 260 190 x 260 180 x 115 285 x 260 220 x 395 230 x 270 Ø270
Overall Roller Size (mm) 115 x 270 x 110 230 x 270 x 110 250 x 310 x 110 345 x 270 x 110 560 x 395 x 110 400 x 345 x 145 1120 x 415 x 145
Wheels 2 4 4 6 8 8 16
Wheel Size (D x W in mm) 82 x 100 82 x 100 82 x 100 82 x 100 82 x 100 115 x 60 115 x 60

Applications

Designed for moving heavy loads across flat surfaces. The nylon wheels provide added protection to flooring and with the option between swivel or fixed operation, this product is suited for many applications.
