ISC Prusik Minding Pulleys
Features
ISC Prusik Minding Pulleys are designed for heavy duty rescue, rigging and hauling systems.
The full range consists of sizes small, medium and large. Each size is available in a single or double pulley configuration, in aluminium or stainless steel.
Specifications
Alloy Plate with Alloy Wheel
CODE |
DESCRIPTION |
MBS |
ROPE |
SHEAVE |
WEIGHT |
---|---|---|---|---|---|
VISC 4-060A1 | Small Single | 40kN | 13 mm | 50 mm | 200 g |
VISC RP061A1 | Small Double Becket | 40kN | 13 mm | 50 mm | 340 g |
VISC RP063A1 | Medium Single | 50kN | 13 mm | 62 mm | 280 g |

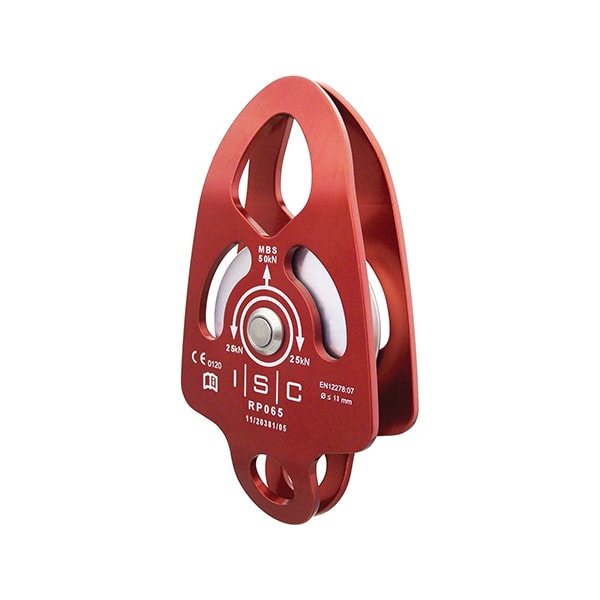

VISC RP065A1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 300 g |
VISC RP064A1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 500 g |
VISC RP066A1 | Large Single | 70kN | 16 mm | 75 mm | 440 g |
VISC RP067A1 | Large Double Becket | 70kN | 16 mm | 75 mm | 760 g |
Stainless Steel with Stainless Wheel
CODE |
DESCRIPTION |
MBS |
ROPE |
SHEAVE |
WEIGHT |
---|---|---|---|---|---|
VISC RP060D1 | Small Single | 40kN | 13 mm | 50 mm | 398 g |
VISC 4P061D1 | Small Double Becket | 40kN | 13 mm | 50 mm | 674 g |
VISC RP063D1 | Medum Single | 50kN | 13 mm | 62 mm | 584 g |
VISC RP065D1 | Medium Single Becket | 50kN | 13 mm | 62 mm | 584 g |
VISC RP064D1 | Medium Double Becket | 50kN | 13 mm | 62 mm | 1036 g |
VISC RP066D1 | Large Single | 70kN | 16 mm | 75 mm | 896 g |
VISC RP067D1 | Large Double Becket | 70kN | 16 mm | 75 mm | 1626 g |
