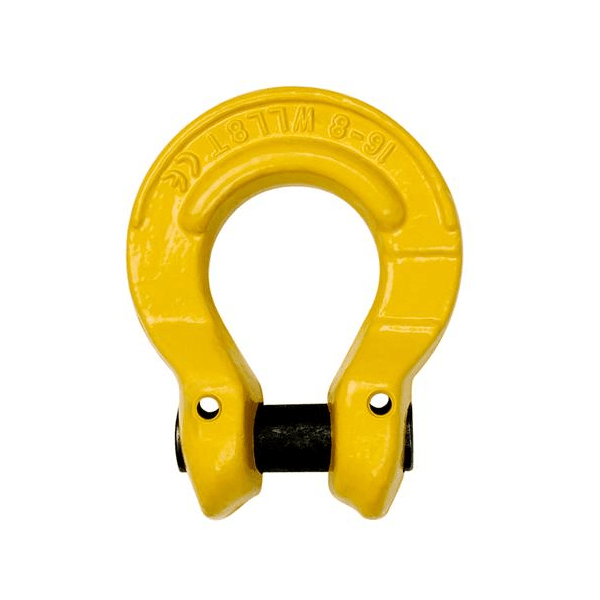

Grade 80 Omega Link
Features
- Australian Standard: AS 3776
- Chain Size 7 – 20 mm
- Not for use on PWB oblong links.

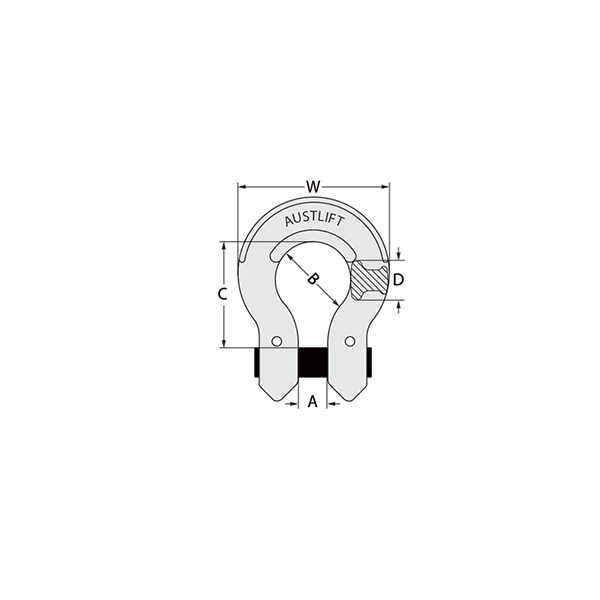

Specifications
| Chain Size (mm) |
WLL (tonnes) |
K (mm) |
D (mm) |
P (mm) |
T (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
| 7.1/8.0 | 2.0 | 36 | 27 | 9 | 11 | 0.2 | 41322Y | 8-018-07 | YO 6 – 8 |
| 10.0 | 3.2 | 44 | 32 | 12 | 15 | 0.4 | 41323Y | 8-018-10 | YO 7+8 – 8 |
| 13.0 | 5.3 | 55 | 42 | 16 | 17 | 0.9 | 41324Y | 8-018-13 | YO 10 – 8 |
| 16.0 | 8.0 | 69 | 50 | 18 | 22 | 1.5 | 41325Y | 8-018-16 | YO 13 – 8 |
| 18,20 | 12.5 | 71 | 58 | 21 | 28 | 2.1 | 41326Y | 8-018-20 | YO 18/20 – 8 |
Applications
Suitable as chain end fitting
