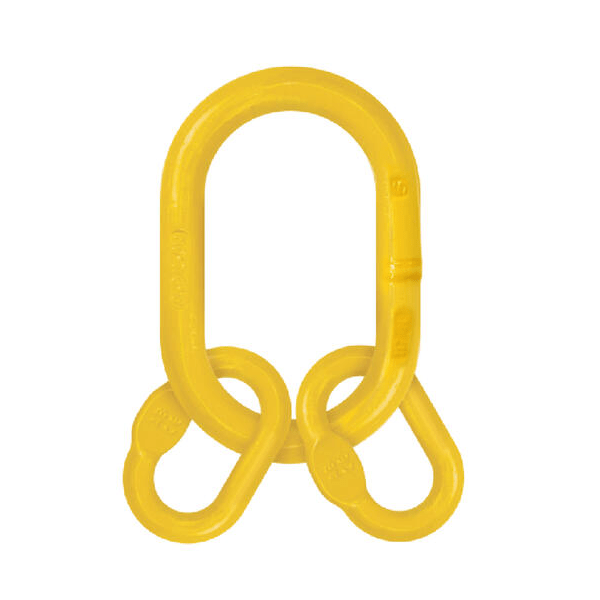

Grade 80 Large Multi Oblong Link

Features

  • Designed for use in 2, 3 or 4-leg applications
  • Comprising a master link and two intermediate links, each with the same lifting capacity.
  • The intermediate links allow for back hooking and attachment of thimbles.
  • Sizes 6-22mm manufactured in Australia.
  • Includes standard markings of either PWB-HA800 for links manufactured in Australia.
  • 26mm and 32mm manufactured in South Africa.



Product Enquiry

Specifications

Chain Size
2, 3 or 4 Leg
WLL
(tonnes)
H
(mm)
J
(mm)
K
(mm)
T
(mm)
U
(mm)
V
(mm)
Mass
(kg)
Part No. Markings
10.0 5.5 240 120 26 114 57 20 4.0 40543 40543-10
13.0 9.2 280 140 30 130 70 22 6.7 40544 40544-13
16.0 13.8 300 150 32 160 80 30 11.1 40545 40545-16
20.0 21.6 330 165 42 180 90 32 17.5 40546 40546-20
22.0 26.0 360 180 50 200 100 40 25.2 40547 40547-22
26.0 36.7 431 231 60 368 205 50 64.0 42048 MA60QA GR80
32.0 54.5 473 263 70 431 231 60 103.0 42049 MA70QA GR80

Applications

Chain slings or wire rope slings
