Grade 80 Eye Cradle Grab Hook
Grab Hook Features
- Australian Standard: AS 2321
- Chain Size 6 – 32mm
- No reduction in WLL when used as a shortening hook on cradle type with supporting wings
- 32mm may be supplied without supporting wing
- Design Factor 4:1
KITO PWB prefers that Grab Hooks and all shortenings be attached to the top fitting using a separate Connector which is the most versatile, usable and safest configuration.
However, shortening devices for chain sizes 16 mm and above must be fitted to separate connecting links to the chain. Only devices on chain slings comprising of 13mm chain or below may share the same connector as the leg of chain.

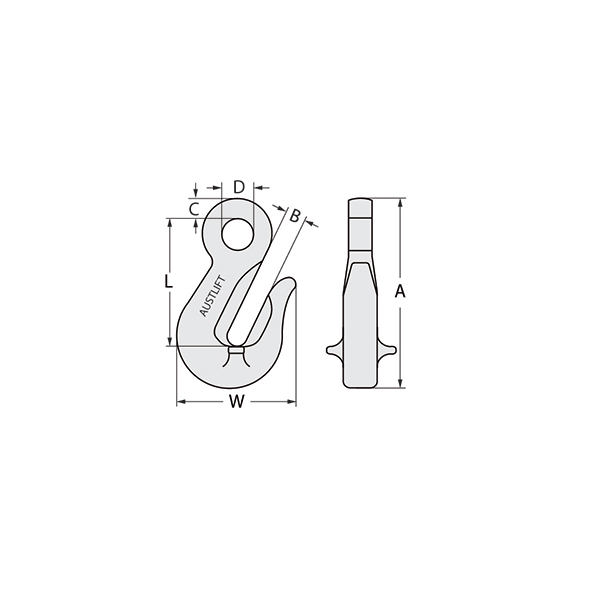

Specifications
Chain Size (mm) |
WLL (tonnes) |
P (mm) |
A (mm) |
K (mm) |
Mass (kg) |
Part No. | Yoke Part No. | Markings |
6.0 | 1.1 | 8 | 13 | 51 | 0.2 | 40310Y | 8-041-06 | 6-8 YH |
7.1/8.0 | 2.0 | 10 | 15 | 60 | 0.3 | 40311Y | 8-041-07 | YH 7 + 8 – 8 |
10.0 | 3.2 | 13 | 20 | 84 | 0.6 | 40312Y | 8-041-10 | YH 10 – 8 |
13.0 | 5.3 | 16 | 25 | 102 | 1.4 | 40313Y | 8-041-13 | YH 13 – 8 |
16.0 | 8.0 | 20 | 30 | 114 | 2.2 | 40314Y | 8-041-16 | YH 16 – 8 |
20.0 | 12.5 | 23 | 36 | 132 | 3.8 | 40315Y | 8-041-20 | YH 20 – 8 |
22.0 | 15.0 | 26 | 38 | 165 | 4.6 | 40316Y | 8-041-22 | YH 22 – 8 |
26.0 | 21.2 | 29 | 41 | 187 | 10.3 | 40317Y | 8-041-26 | YH 26 – 8 |
32.0 | 31.5 | 37 | 57 | 230 | 20.0 | 40318Y | 8-041-32 | YH 32 – 8 |
Applications
Grade 80 Eye Cradle Grab Hook
Shortening and reeving of chain slings.
