Grade 80 Pinlok Latchlok Hook

Features

  • Australian standard: AS 3776
  • Chain Size 6 -22 mm
  • Easily and safely closed with one hand, the Gr8 Pinlok Latchlok Hook will lock itself when the load is engaged and will not disengage even if the load is temporarily set down.
  • Can be mechanically connected to Grade 80 Chain for easy assembly and use.Test certificates supplied
Product Enquiry












Additional information

Size

6mm, 8mm, 10mm, 13mm, 16mm, 20mm

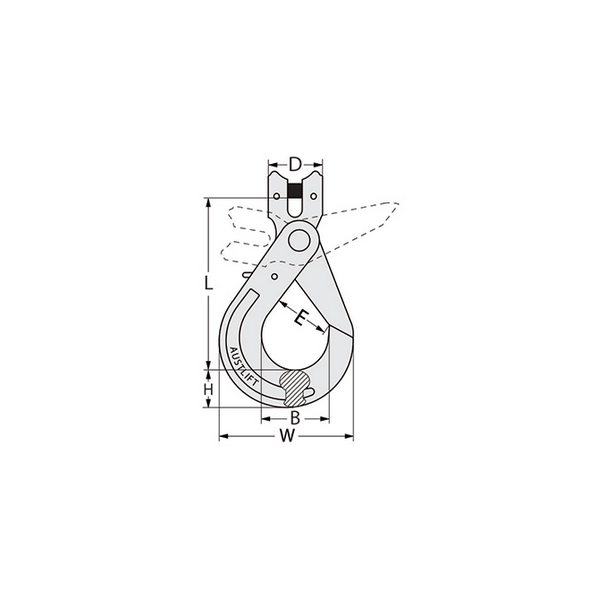

Specifications

Chain Size
(mm)
WLL
(tonnes)
A
(mm)
K
(mm)
P
(mm)
T
(mm)
H
(mm)
Mass
(kg)
Part No.  Yoke Part No. Markings
6 1.1 6 100 29 15 19 0.5 40359Y  8-026-06 YD 6 – 8
7.1/8.0 2.0 9 119 34 20 24 0.8 40371Y  8-026-07 YD 7 + 8 – 8
10 3.2 11 143 44 26 30 1.4 40372Y  8-026-10 YD 10 – 8
13 5.3 14 179 52 30 39 2.9 40373Y  8-026-13 YD 13 – 8
16 8.0 18 212 60 36 49 5.6 40374Y  8-026-16 YD 16 – 8
20 12.5 21 243 90 48 62 8.8 40360Y  8-026-20 YD 18/20 – 8
22 15.0 24 273 80 49 63 14.1 40364Y  8-026-22 YD 22 – 8

Applications

Chain slings.
