Grade 100 Swivel Self Locking Hook
Features
- Australian Standard: AS 3776
- Chain Size 7 – 26 mm
- Designed with ball bearing allowing the hook to swivel under load.

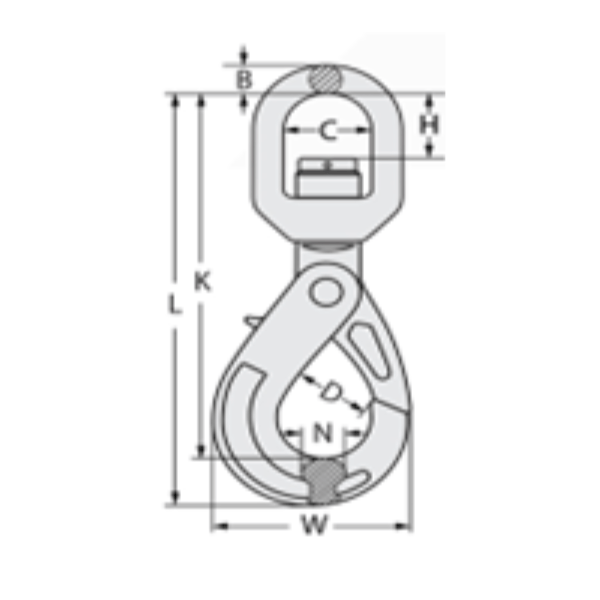

Specifications
| Chain Size (mm) | WLL (tonnes) |
K (mm) |
P (mm) |
B (mm) |
A (mm) |
D (mm) |
T (mm) |
H (mm) |
N.W (kg) |
Part No. | Yoke Part No. | Marking |
| 7-8 | 2.5 | 186 | 34 | 29 | 36 | 13 | 20 | 24 | 1.2 | 42435 | X-027N-07 | 7+8-10 1/4 |
| 10 | 4.0 | 218 | 44 | 34 | 41 | 16 | 26 | 30 | 2.0 | 42437 | X-027N-10 | 10-10 3/8 |
| 13 | 6.7 | 276 | 51 | 43 | 46 | 21 | 30 | 39 | 4.1 | 42438 | X-027N-13 | 13-10 1/2 |
| 16 | 10.0 | 329 | 60 | 50 | 61 | 23 | 36 | 49 | 6.8 | 42439 | X-027N-16 | 16-10 5/8 |
| 20 | 16.0 | 387 | 70 | 82 | 74 | 25 | 53 | 65 | 12.6 | 42440 | X-027N-20 | 20-10 3/4 |
| 22 | 19.0 | 457 | 80 | 95 | 97 | 33 | 49 | 63 | 19.4 | 42441 | X-027N-22 | 22-10 7/8 |
| 26 | 26.5 | 535 | 99 | 115 | 123 | 42 | 56 | 69 | 32.9 | 42442 | X-027N-26 | 26-10 1 |
Applications
Chain and wire ripe slings.
