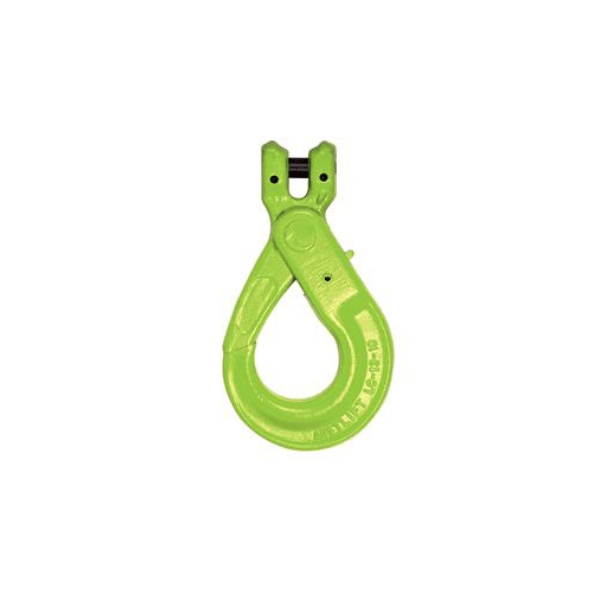

Grade 100 Clevis Self Locking Hook
Features
- Australian Standard: AS 3776
- Chain Size 7- 22 mm
- Can be mechanically connected to grade 100 chain for easy assembly and use.
- Test certificates available on request.
G100 Clevis self-locking hook allows easy one-handed closure; it will close itself when the load is engaged. The hook will not open until the trigger at the back is pressed. Clevis style for easy connection to the chain.
Specifications

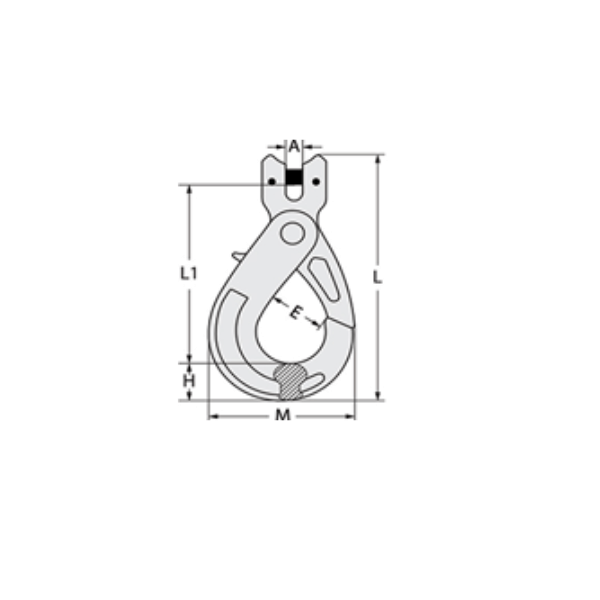

| SIZE (mm) | CODE | WLL (T) | Wt. (kg) | DIMENSIONS (mm) | |||||
| A | E | H | L | L1 | M | ||||
| 6 | BKG06+ | 1.4 | 0.5 | 7.5 | 28 | 20 | 131 | 96 | 70 |
| 8 | BKG08+ | 2.5 | 0.9 | 9.5 | 35.5 | 26 | 166 | 123 | 90 |
| 10 | BKG10+ | 4 | 1.6 | 12 | 45 | 30 | 196.5 | 144 | 109 |
| 13 | BKG13+ | 6.7 | 2.9 | 15 | 53.5 | 40.5 | 251 | 182 | 138.5 |
| 16 | BKG16+ | 10 | 5.8 | 17.5 | 62 | 50.5 | 303 | 217 | 170.5 |
| 20 | BKG20+ | 16 | 8.6 | 25 | 76.5 | 62 | 337.5 | 235 | 192.5 |
| 22 | BKG22+ | 19 | 12.1 | 25.5 | 80 | 66 | 391 | 276.5 | 205 |
